1.0/2.3 Crimp / Crimp Plug True 75 Ohm 3Ghz

52-005-B6-AB

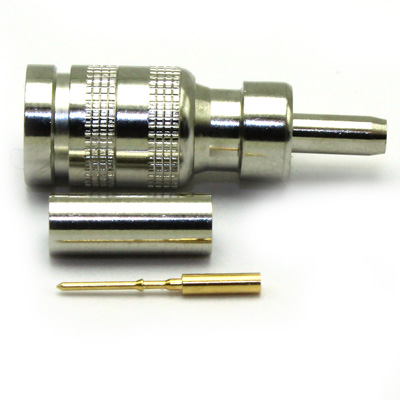

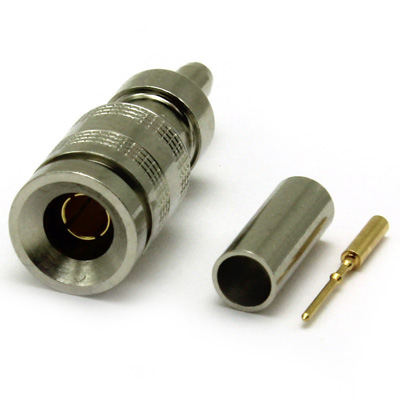

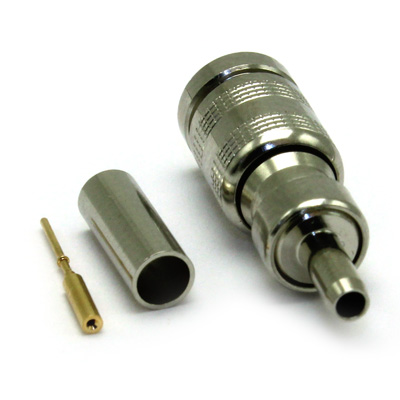

1.0/2.3 straight full crimp plug with gold plated centre and outer contact. Centre contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RG179 and similar cable in group AB.

From £3.40 each ex VAT
1-9 = £4.25 |  10-24 = £4.00 |  25-49 = £3.82 |  50-99 = £3.66 |  +100 = £3.40

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -18.3 dB @ 4.5GHz
Mechanical Specification
Design Standard IEC 61169-29
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight 4.12g
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Beryllium Copper
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 179DT AB 75 2.54 PEF 1.42 BC 0.31 1/0.31 Foil and Braid
RG179 B/U AB 75 2.54 PTFE 1.6 SCCS 0.3 7/0.1 Copper Braid
RG179 Solid AB 75 2.54 Foam 1.6 SCSC 0.3 1/0.3 Copper Braid
RG179 Stranded AB 75 2.54 Foam 1.6 SCSC 0.3 7/0.1 Copper Braid
RG187 AB 75 2.67 PTFE 1.52 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data available on request, please contact COAX
Performance Data
1GHz -29.69dB
2GHz -18.39dB
3GHz -14.86dB
4.5GHz -17.61dB

Assembly

Assembly Process AP026
Stripping Dimensions SD08
Centre Contact 0.95mm Sq 96-HTS-43
Outer Contact 3.25mm Hex 96-HTS-43

Accessories

Centre Contact Crimp Tool 96-HTS-43
Outer Contact Crimp Tool 96-HTS-43
1.0/2.3 - 75ohm Centre Contact Crimp Alignment Tool 100-1023
1.0/2.3 Extractor Tool 96-1023
Protective PVC Cap 100-135
Blue Strain Relief Boot 97-800-BU-03
Black Strain Relief Boot 97-800-BK-03
Yellow Strain Relief Boot 97-800-YE-03

Downloads

Interface Dimensions C-75-Ohm-1.0-2.3
Stripping Dimensions SD08
Data Sheet 52 005 B6 AB REV C00 2
Assembly Process AP026
