1.0/2.3 Crimp / Crimp Plug True 75 Ohm 3Ghz

52-005-B6-BG

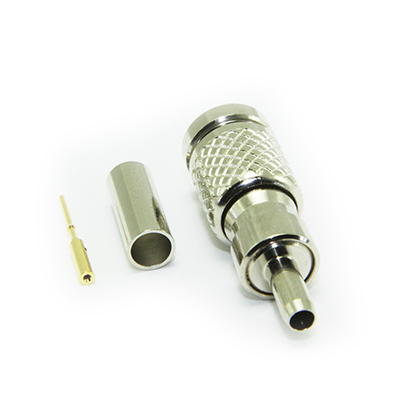

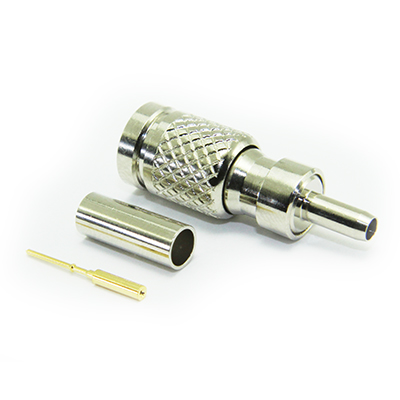

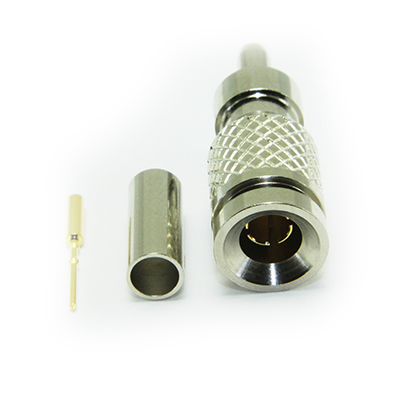

1.0/2.3 straight full crimp plug with gold plated centre and outer contact. Centre contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RA8000 and similar cable in group BG.

From £2.50 each ex VAT
1-9 = £3.33 |  10-24 = £3.13 |  25-49 = £2.78 |  50-99 = £2.63 |  +100 = £2.50

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -18.3 dB @ 4.5GHz
Mechanical Specification
Design Standard IEC 61169-29
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight 4.08g
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group BG

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RA8000 BG 75 2.75 PEF 1.45 BC 0.31 1/0.31 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP026
Stripping Dimensions SD08
Centre Contact 0.95mm Sq 96-HTS-43
Outer Contact 3.25mm Hex 96-HTS-43

Accessories

Centre Contact Crimp Tool 96-HTS-43
Outer Contact Crimp Tool 96-HTS-43
1.0/2.3 - 75ohm Centre Contact Crimp Alignment Tool 100-1023
1.0/2.3 Extractor Tool 96-1023
Protective PVC Cap 100-135

Downloads

Interface Dimensions C-75-Ohm-1.0-2.3
Stripping Dimensions SD08
Data Sheet 52 005 B6 BG REV C00 2
Assembly Process AP026
