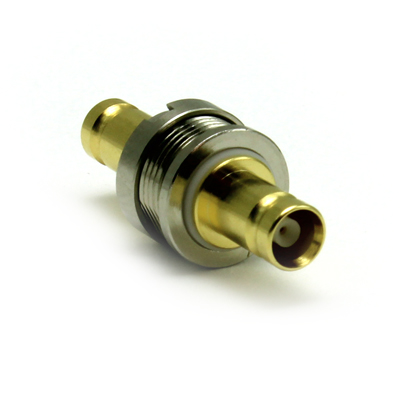

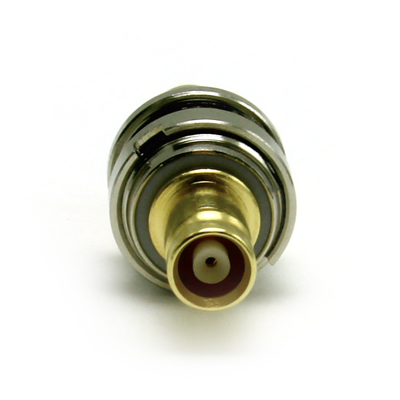

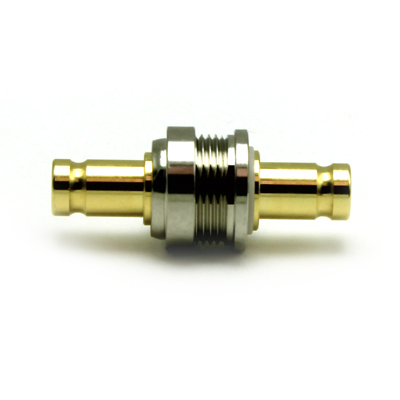

Din 1.0/2.3 Insulated Metal Thread Bulkhead Jack to Jack Adaptor (12G)

52-503-D66

Din 1.0/2.3 75 ohm Insulated with a metal thread Bulkhead Jack to Jack Adaptor . This true 75 ohm Adaptor is designed for Full HD 1080p applications and general use up to 12GHz. With gold plated Closed Entry centre contact to prevent mis-mating .

From £14.25 each ex VAT
1-9 = £15.00 |  10-24 = £14.95 |  25-49 = £14.75 |  50-99 = £14.50 |  +100 = £14.25

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 10000 M-Ohm
Return Loss -18dB @ 12GHz
Mechanical Specification
RoHS Compliant Yes
Mating Cycles 500
Weight 2.86g
Mating Force 10N Max
Un-Coupling Force 10N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Beryllium Copper
Outer Contact Jack Brass
Outer Contact Plug Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Jack Plating Gold
Outer Bulkhead Thread Plating Nickel
Bulkhead Nut Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data 52 503 D66 PD
Return Loss
3.GHz -35dB
6.GHz -32dB
9.GHz -23.dB
12.GHz -18dB
18.GHz -16.4dB

Assembly

Accessories

Castle Nut Spanner 96-1142

Downloads

Interface Dimensions C-75-Ohm-1.0-2.3
Data Sheet 52 503 D66 REV C00 3
Performance Data 52 503 D66 PD
