Back to Micro BNC 75 Ohm BNC Micro (HD BNC)75 ohm

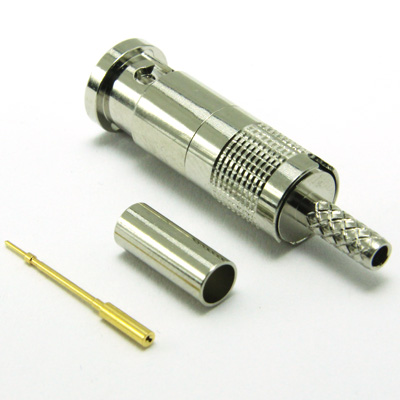

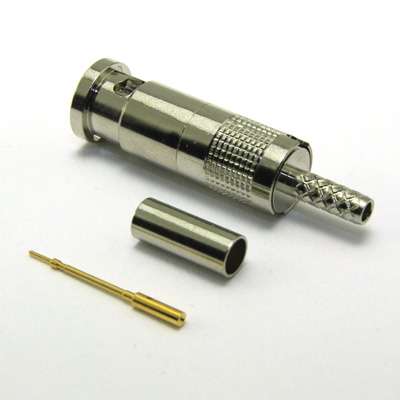

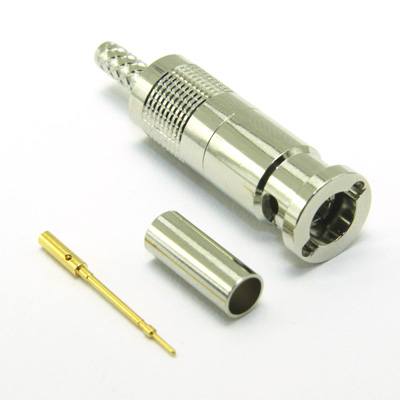

Micro BNC Straight Crimp / Crimp Plug 75 ohm (12GHz)

67-005-B66-AB

Micro BNC 75 ohm straight crimp plug. This true 75 ohm plug is designed for Full HD 1080p applications and general use up to 12GHz. With gold plated centre contact and annealed crimp zones these connectors offer a long term durable solution. Suitable for use with RG179 and similar cables in group AB.
United States Patent No. 9,071.013 applies.

From £4.20 each ex VAT
1-9 = £5.40 |  10-24 = £4.86 |  25-49 = £4.64 |  50-99 = £4.32 |  +100 = £4.20

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 10000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight 5.5g
Mating Force 10N Max
Un-Coupling Force 10N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Bayonet Cap Brass
Gasket Silicone
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 179DT AB 75 2.54 PEF 1.42 BC 0.31 1/0.31 Foil and Braid
RG179 B/U AB 75 2.54 PTFE 1.6 SCCS 0.3 7/0.1 Copper Braid
RG179 Solid AB 75 2.54 Foam 1.6 SCSC 0.3 1/0.3 Copper Braid
RG179 Stranded AB 75 2.54 Foam 1.6 SCSC 0.3 7/0.1 Copper Braid
RG187 AB 75 2.67 PTFE 1.52 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data 67 005 B66 AB PD
Return Loss
3GHz -38dB
6GHz -18dB
12GHz -12dB
15GHz -11dB

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 0.95mm Sq 96-HTS-43
Outer Contact 3.25mm Hex 96-HTS-43

Accessories

Centre Contact Crimp Tool 96-HTS-43
Outer Contact Crimp Tool 96-HTS-43
Micro BNC Plug Insertion And Extractor Tool 96-1132

Downloads

Interface Dimensions C-MICRO-BNC
Stripping Dimensions SD01
Data Sheet 67 005 B66 AB REV A04 1
Assembly Process AP001
Performance Data 67 005 B66 AB PD
