Back to Micro BNC 75 Ohm BNC Micro (HD BNC)75 ohm

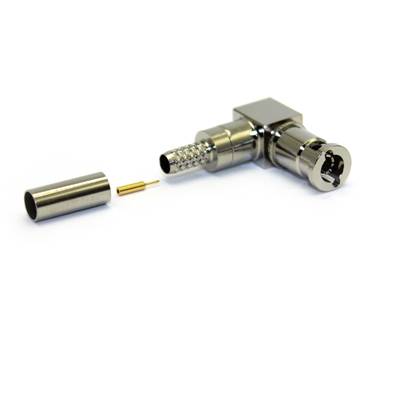

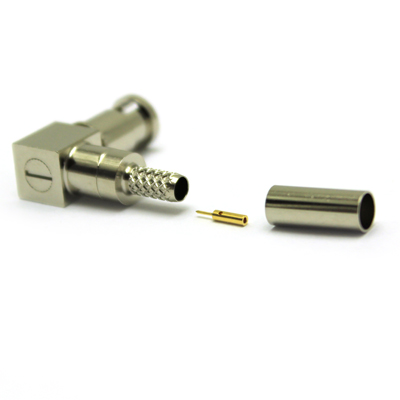

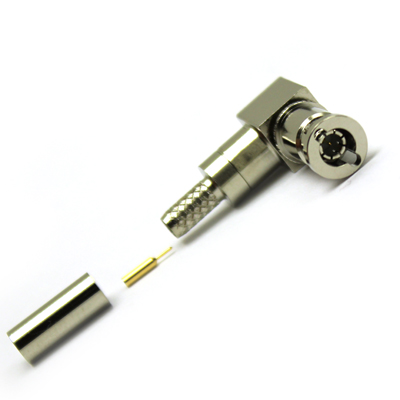

Micro BNC Right Angle Crimp / Crimp Plug 75 ohm 12GHz

67-104-B126-EF1

Micro BNC 75 ohm Right Angle Crimp/Crimp plug. This true 75 ohm plug is designed for Full HD 1080p applications and general use up to 12GHz. With gold plated centre contact and annealed crimp zones these connectors offer a long term durable solution. Suitable for use with cables in group EF.
** Now Tested to 18 GHz **

From £5.80 each ex VAT
1-9 = £12.47 |  10-24 = £8.25 |  25-49 = £6.47 |  50-99 = £6.00 |  +100 = £5.80

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 10000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 9.53g
Mating Force 10N Max
Un-Coupling Force 10N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Bayonet Cap Brass
Gasket Silicone
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group EF

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 1855A EF 75 4.04 PEF 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 1865A EF 75 3.81 PEF 2.39 BC 0.54 1/0.54 Foil and Braid
Belden 4855ANH EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 4855P EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 4855R EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Canare L-2.5CFB EF 75 4.0 PEF 2.4 BC 0.50 1/0.50 Foil and Braid
Canare L-2.5CHD EF 75 4.2 PEF 2.59 BC 0.59 1/0.59 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact 1.07 mm Sq 96-HTS-77
Outer Contact 4.52 mm Hex 96-HTS-77

Accessories

Centre Contact Crimp Tool 96-HTS-77
Outer Contact Crimp Tool 96-HTS-77

Downloads

Interface Dimensions C-MICRO-BNC
Data Sheet 67 104 B126 EF1 REV A02 1
