Micro BNC End Launch Bulkhead Jack 1.6mm 12GHz

67-463-D66 1.6mm

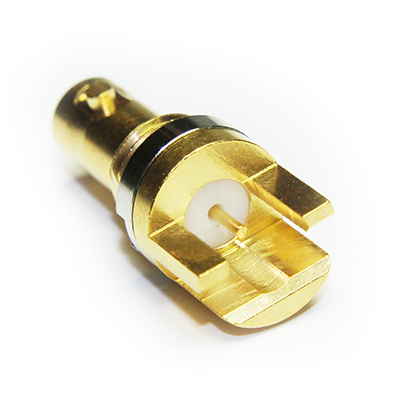

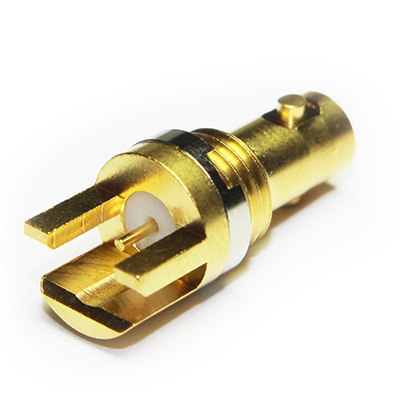

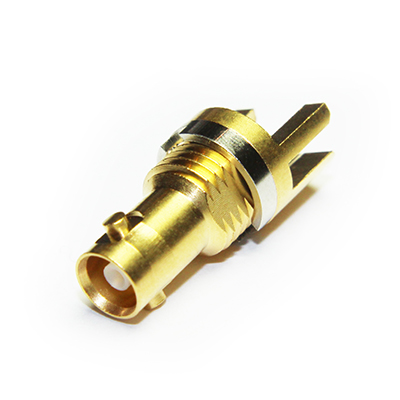

Micro BNC 75 ohm end launch jack for 1.6mm PCB. This true 75 ohm jack is designed for Full HD 1080p applications and general use up to 12GHz. With gold plated inner and outer contacts.
** Now Tested to 18GHz **

From £2.60 each ex VAT
1-9 = £3.24 |  10-24 = £3.05 |  25-49 = £2.96 |  50-99 = £2.80 |  +100 = £2.60

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 10000 M-Ohm
Mechanical Specification
Return Loss -13db@12GHz
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 500
Contact Retention 10N min
Weight
Mating Force 10N Max
Un-Coupling Force 10N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data 67 463 D66 16 PD 18Ghz
Return Loss
3.GHz -22.56db
6.GHz -16.15db
12GHz -12.93db
18GHz -9.68db

Assembly

Accessories

6.4 x 7.5 x 2 mm Castle Nut Spanner 1/4" Hex Drive 96-1135

Downloads

Interface Dimensions C-MICRO-BNC
Data Sheet 67 463 D66 16 REV C02 1
Performance Data 67 463 D66 16 PD 18Ghz
