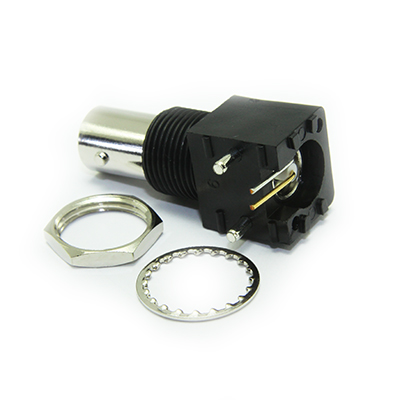

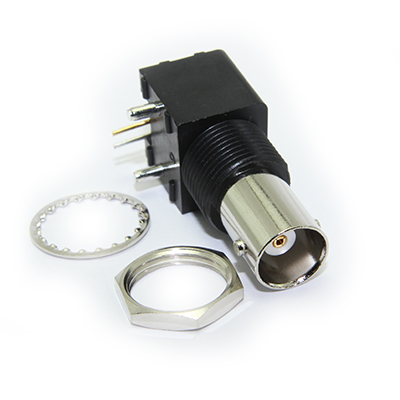

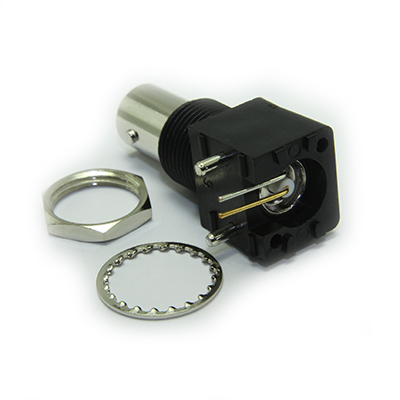

BNC Right Angle Low Profile Insulated Bulkhead PCB Jack, 50 Ohm

10-471-K5

BNC 50 ohm insulated right angle PCB jack, low profile bulkhead mount, for applications up to 1GHz. Gold plated centre contact.

From £0.82 each ex VAT
1-9 = £1.09 |  10-24 = £1.03 |  25-49 = £0.91 |  50-99 = £0.86 |  +100 = £0.82

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 250
Contact Retention 10N min
Cable Retention 50N min
Weight 10.05g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Body Insulation ABS
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Solder

Accessories

Hex Nut 100-027
Locking Washer 100-028
Castle Nut 100-075
Castle Nut Spanner 96-1140

Downloads

Interface Dimensions C-50-Ohm-BNC
