BNC Straight Crimp/Crimp Jack (IP68 unmated)

10-075-Q66-AI

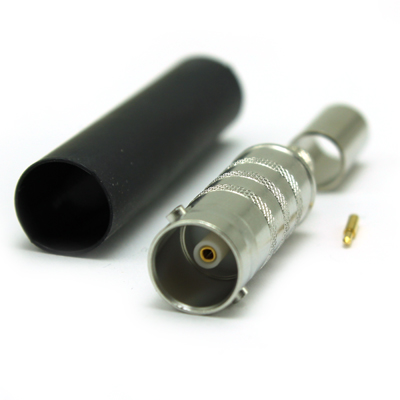

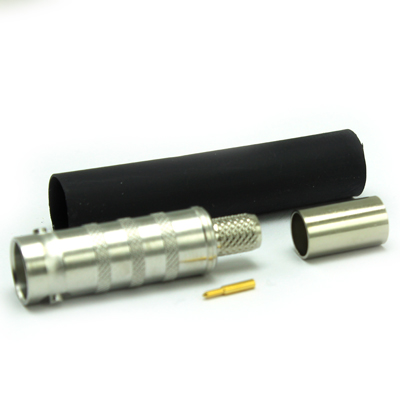

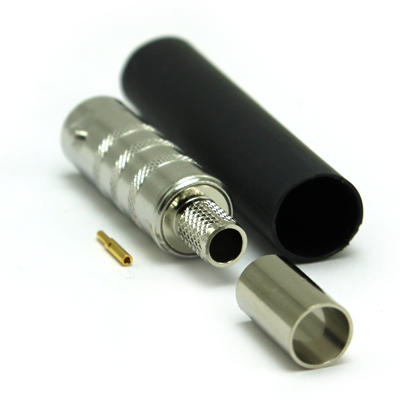

BNC 75 ohm straight crimp/crimp jack, for applications up to 3GHz. The interface of this connector is IP68 sealed to provide waterproofing in both the mated and unmated state. The standard 75 ohm interface allows this connector to be mated with any BNC plug. An adhesive lined heat shrink sleeve is included to seal the cable entry. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG59 or similar cables in group AI. Other cable versions available on request.

From £10.52 each ex VAT
1-9 = £18.24 |  10-24 = £14.73 |  25-49 = £12.27 |  50-99 = £11.98 |  +100 = £10.52

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 3GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 120N min
Weight 26g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP68 10M x 4 hrs
Materials
Centre Contact Brylum copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating White Bronze
Pack Size 1

Suitable for Cables in Group AI

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX30 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
KX52 AI 75 - - - - - - -
KX6 AI 75 6.1 PE 3.7 BC 0.6 7/0.20 CopperBraid
RG59 AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG59U AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG62 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
URM104 AI 75 6 PE - - 0.64 1/0.64 CopperBraid
URM70 AI 75 5.8 PE 3.25 TC 0.6 7/0.20 CopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Stripping Dimensions SD01
Centre Contact 0.95sq mm 96-HTS-76
Outer Contact 6.5mm Hex 96-HTS-76

Accessories

Centre Contact Crimp Tool 96-HTS-76
Outer Contact Crimp Tool 96-HTS-76
Rotary Cable Stripper 96-312B

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 075 Q66 AI REV B01 1
