BNC Insulated Front Mount Bulkhead Solder Jack 75 ohm

10-351-K6

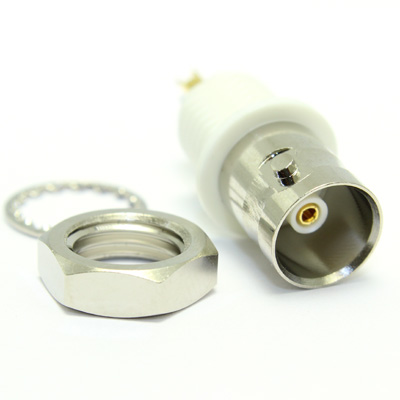

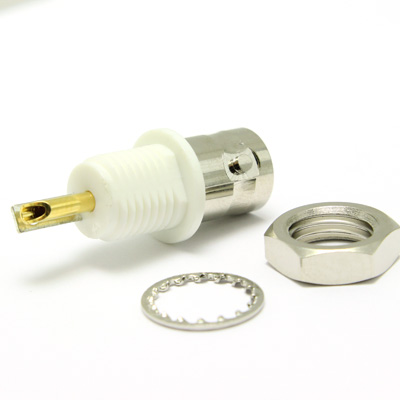

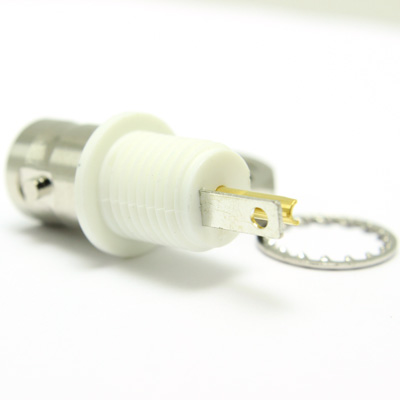

An insulated 75 ohm BNC bulkhead jack, for use up to 1 GHz. This front mounted jack is insulated from the mounting and has a gold plated solder bucket contact and with solder spill outer connection.

From £0.95 each ex VAT
1-9 = £1.27 |  10-24 = £1.16 |  25-49 = £1.09 |  50-99 = £0.99 |  +100 = £0.95

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 50N min
Weight 6.83g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Body Insulation ABS
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Solder

Accessories


Downloads

Interface Dimensions C-75-Ohm-BNC
Data Sheet 10 351 K6 REV A00 3
