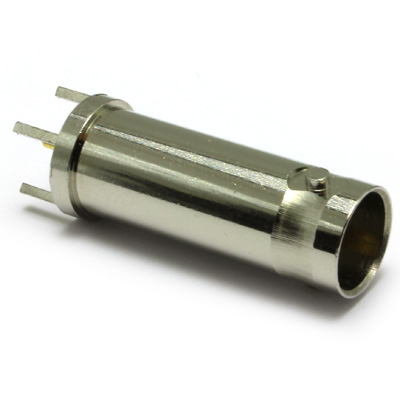

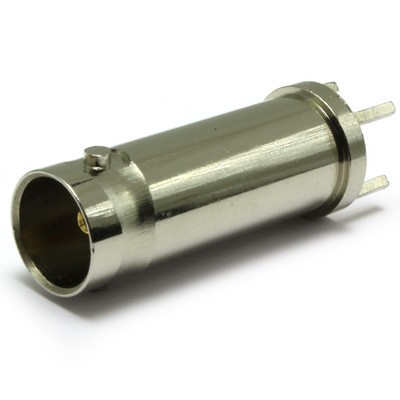

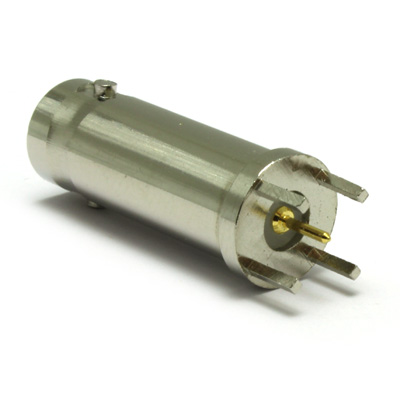

BNC Straight PCB Mount Jack, 75 Ohm ( 28mm Long )

10-452-A6

BNC 75 ohm straight PCB jack for applications up to 1GHz. Extended length body giving a board height of 27.8mm with gold plated centre contact.

From £1.97 each ex VAT
1-9 = £3.94 |  10-24 = £3.15 |  25-49 = £2.63 |  50-99 = £2.25 |  +100 = £1.97

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 500
Contact Retention 10N min
Cable Retention 50N min
Weight 10.4g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator POM
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Solder

Accessories


Downloads

Interface Dimensions C-75-Ohm-BNC
Data Sheet 10 452 A6 REV A00 1
