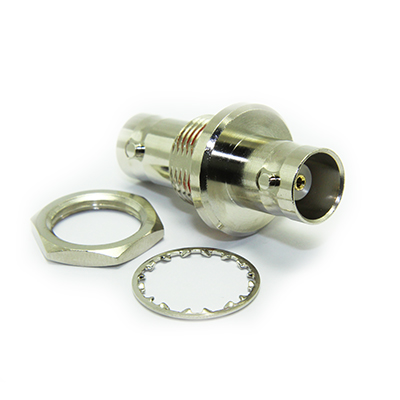

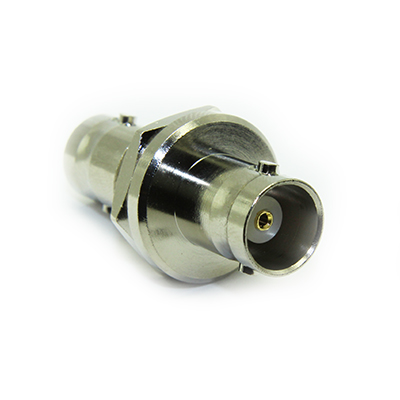

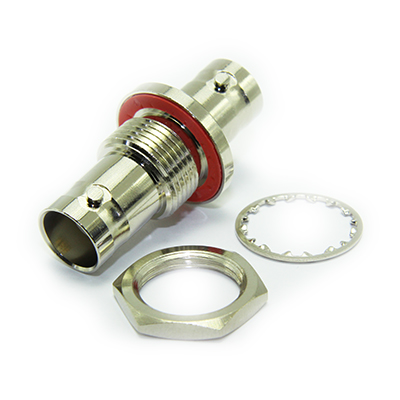

BNC Bulkhead Jack to Jack Adaptor, 50 Ohm

10-501-A3

BNC 50 ohm Jack to Jack bulkhead adaptor suitable for applications up to 1GHz

From £2.10 each ex VAT
1-9 = £2.80 |  10-24 = £2.63 |  25-49 = £2.33 |  50-99 = £2.21 |  +100 = £2.10

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Mating Cycles 250
Contact Retention 10N min
Cable Retention 50N min
Weight 17.75g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Accessories

16mm Dia Castle Nut 100-075
Castle Nut Spanner 96-1140

Downloads

Interface Dimensions C-50-Ohm-BNC
