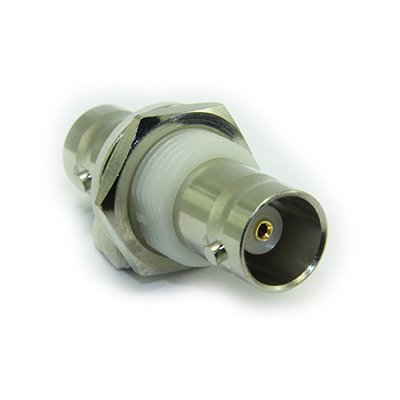

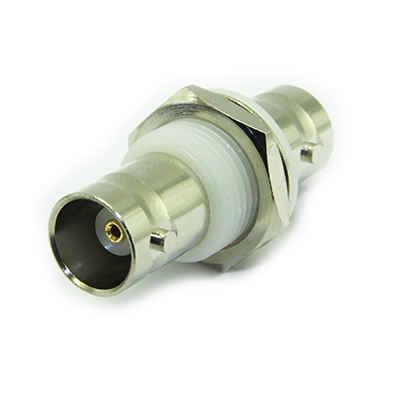

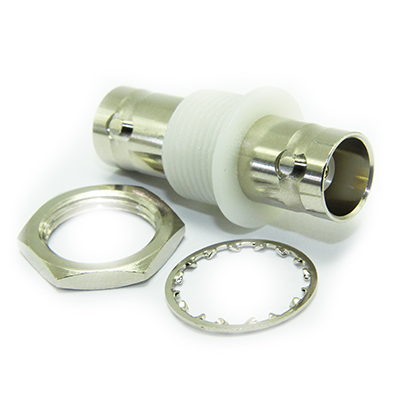

BNC Insulated Bulkhead Jack to Jack Adaptor, 50 Ohm

10-503-A3

BNC 50 ohm Jack to Jack insulated bulkhead adaptor suitable for applications up to 1GHz

From £1.02 each ex VAT
1-9 = £1.36 |  10-24 = £1.28 |  25-49 = £1.13 |  50-99 = £1.07 |  +100 = £1.02

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Mating Cycles 250
Weight 12.75g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Body Insulation ABS
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Accessories

16mm Dia Castle Nut 100-075
Castle Nut Spanner 96-1140

Downloads

Interface Dimensions C-50-Ohm-BNC
