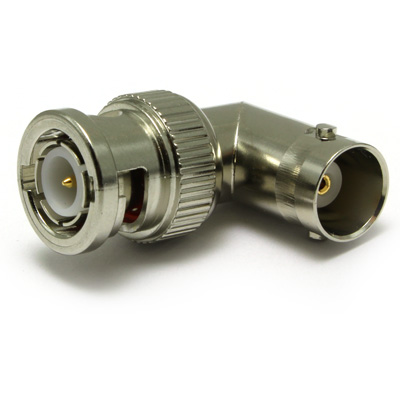

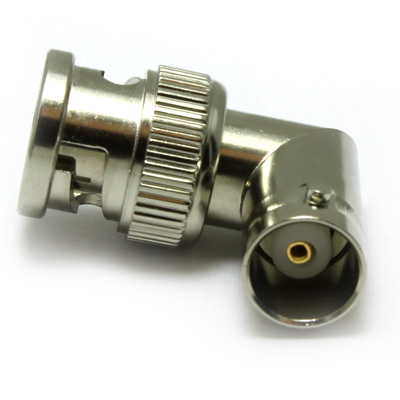

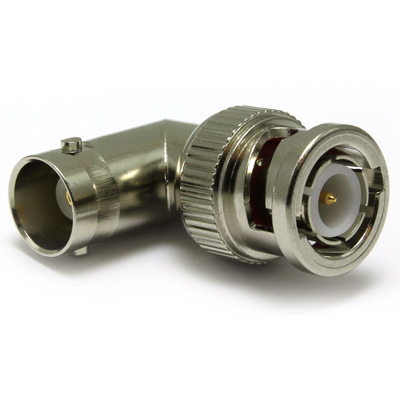

BNC Right Angle Plug to Jack Adaptor, 75 Ohm

10-520-A0

BNC 75 ohm Plug to Jack Right Angle adaptor suitable for applications up to 3GHz

From £2.10 each ex VAT
1-9 = £3.78 |  10-24 = £3.15 |  25-49 = £2.70 |  50-99 = £2.37 |  +100 = £2.10

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 3GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Mating Cycles 250
Contact Retention 10N min
Cable Retention 50N min
Weight 16.2
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX
