F Type Crimp / Crimp Plug True 75ohm ( 3G )

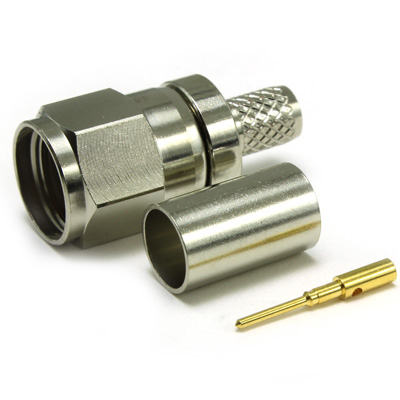

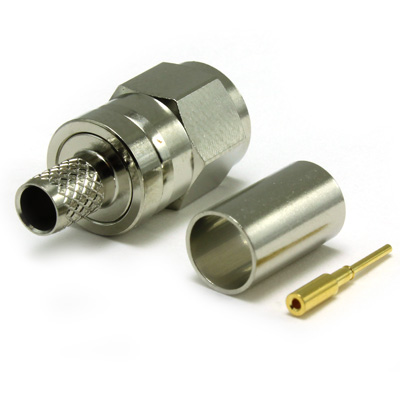

F Type full crimp true 75 ohm straight plug. This F Type has a separate gold plated centre contact and a body optimised for performance up to 3GHz. Contact and crimp sleeve are annealed for enhanced performance. Suitable for Belden 1505F and similar cables in group FE.

From £3.35 each ex VAT
1-9 = £3.92 | 10-24 = £3.85 | 25-49 = £9.68 | 50-99 = £3.52 | +100 = £3.35

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 3GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 61169-47
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Cable Retention	150N min
Weight
Mating Force	10N max
Un-Coupling Force	10N max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group FE

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 1505F	FE	75	6.15	PEF	3.68	BC	0.79	1/0.79	Double Copper Braid
Bryant BD SD50F	FE	75	6.15	PEF	3.68	BC	0.79	7/0.286	Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	1.72mm Hex	96-HTS-76
Outer Contact	6.48mm Hex	96-HTS-76

Accessories

Centre Contact Crimp Tool	96-HTS-76
Outer Contact Crimp Tool	96-HTS-76

Downloads

Interface Dimensions	C-F-type
Stripping Dimensions	SD01
Data Sheet	15 005 B36 FE REV C00 1
Assembly Process	AP001
