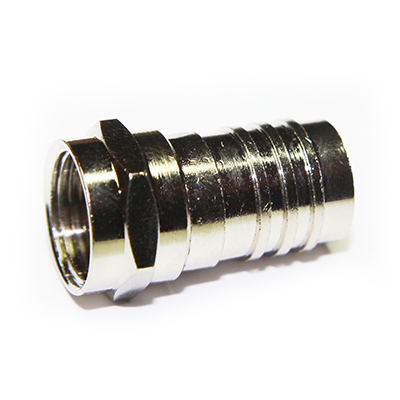

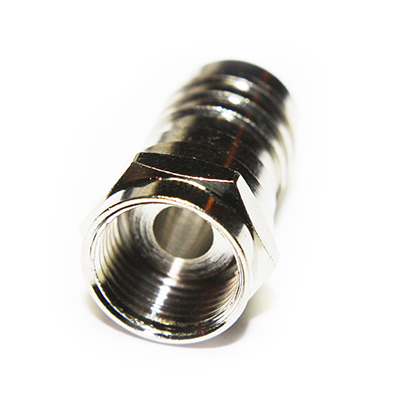

F Type Integral Crimp Plug

15-015-Z0-AI

F Type single piece 75 ohm plug. This single piece connector has an integral crimp sleeve for simple termination, the centre conductor of the cable is used as the centre contact. Suitable for RG59 and similar cable in group AI.

From £0.50 each ex VAT
1-9 = £0.67 |  10-24 = £0.63 |  25-49 = £0.56 |  50-99 = £0.53 |  +100 = £0.50

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-47
RoHS Compliant Yes
Centre Contact Termination N/A
Outer Contact Termination Crimp
Mating Cycles 50
Cable Retention 120N min
Weight
Mating Force 10N max
Un-Coupling Force 10N max
Environmental Specification
Operating Temperature -40 to +80 Deg C
IP Rating ( Mated ) IP30
Materials
Centre Contact N/A
Outer Contact Brass
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AI

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX30 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
KX52 AI 75 - - - - - - -
KX6 AI 75 6.1 PE 3.7 BC 0.6 7/0.20 CopperBraid
RG59 AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG59U AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG62 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
URM104 AI 75 6 PE - - 0.64 1/0.64 CopperBraid
URM70 AI 75 5.8 PE 3.25 TC 0.6 7/0.20 CopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP009
Centre Contact N/A
Outer Contact 8.23mm Hex 96-336C2

Accessories

Outer Contact Crimp Tool 96-336C2
Rotary Cable Stripper 96-312B

Downloads

Interface Dimensions C-F-type
Assembly Process AP009
