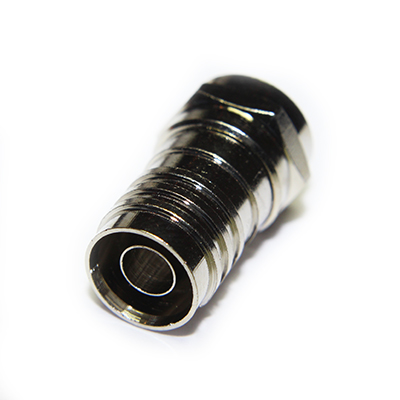

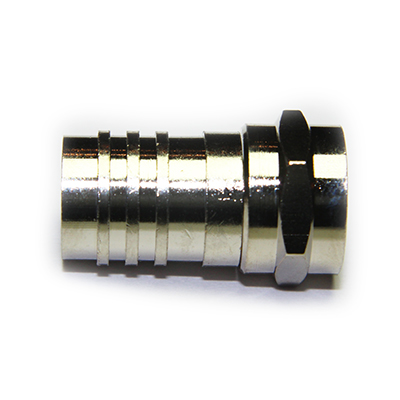

F Type Integral Crimp Plug

15-015-Z0-CA

F Type single piece 75 ohm plug. This single piece connector has an integral crimp sleeve for simple termination, the centre conductor of the cable is used as the centre contact. Suitable for CT100 and similar cable in group CA.

From £0.66 each ex VAT
1-9 = £0.92 |  10-24 = £0.83 |  25-49 = £0.75 |  50-99 = £0.69 |  +100 = £0.66

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-47
RoHS Compliant Yes
Centre Contact Termination N/A
Outer Contact Termination Crimp
Mating Cycles 50
Cable Retention 60N min
Weight
Mating Force 10N max
Un-Coupling Force 10N max
Environmental Specification
Operating Temperature -40 to +80 Deg C
IP Rating ( Mated ) IP30
Materials
Centre Contact N/A
Outer Contact Brass
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group CA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
CT100 CA 75 6.5 PEF 4.45 BC 1 1/1.0 Foil and Braid
RG6 CA 75 6.99 PEF 4.57 BC 1.02 1/1.02 Foil and Braid
WSC100 CA 75 6.65 PEF 4.7 CCS 1.02 1/1.02 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP009
Centre Contact N/A
Outer Contact 8.20mm Hex 96-106G

Accessories

Outer Crimp Body 96-106G

Downloads

Interface Dimensions C-F-type
Data Sheet 15 015 Z0 CA REV A00 2
Assembly Process AP009
