F Type Plug 'Tool-Less' Spring Lock

15-026-D6-CA

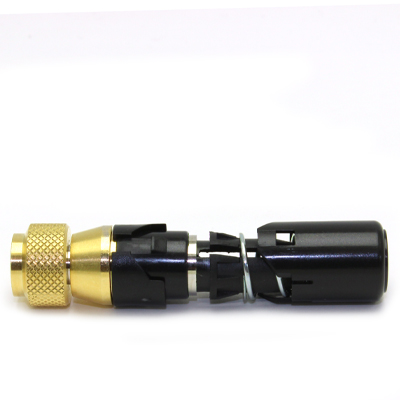

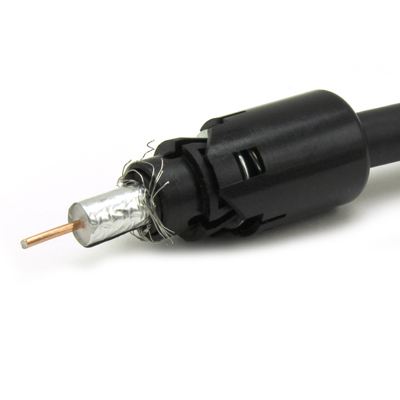

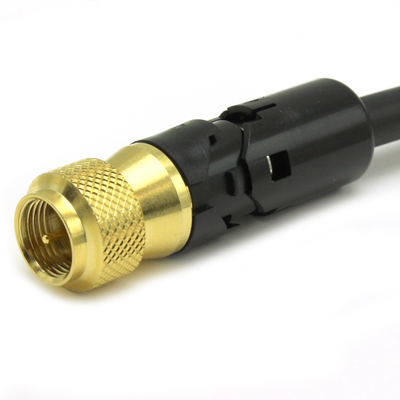

F Type 75 ohm cable plug. This spring lock design allows termination to cable without the need for special tooling. See our assembly video. With a gold plated centre contact. Suitable for CT100 or similar cables in group CA.

From £2.78 each ex VAT
1-9 = £3.00 |  10-24 = £2.96 |  25-49 = £2.86 |  50-99 = £2.82 |  +100 = £2.78

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-47
RoHS Compliant Yes
Centre Contact Termination Easy Fit
Outer Contact Termination Clip
Mating Cycles 500
Cable Retention 60N min
Weight
Mating Force 10N max
Un-Coupling Force 10N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group CA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
CT100 CA 75 6.5 PEF 4.45 BC 1 1/1.0 Foil and Braid
RG6 CA 75 6.99 PEF 4.57 BC 1.02 1/1.02 Foil and Braid
WSC100 CA 75 6.65 PEF 4.7 CCS 1.02 1/1.02 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP008
Stripping Dimensions SD01
Centre Contact Push - On
Outer Contact Push - On

Accessories

Downloads

Interface Dimensions C-F-type
Stripping Dimensions SD01
Data Sheet 15-026-D6-CA-REV-A00-1
Assembly Process AP008
