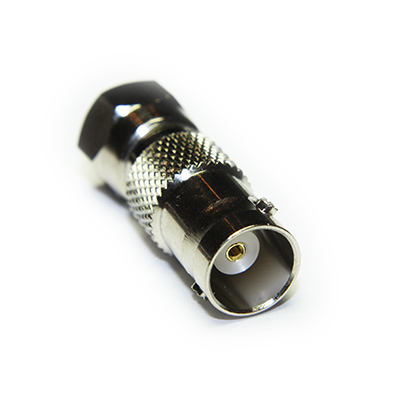

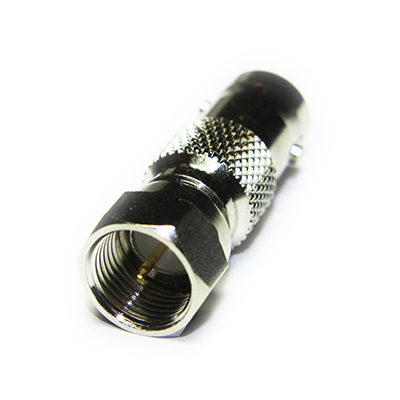

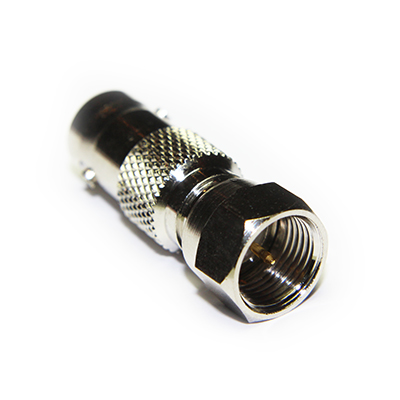

BNC Jack to F Type Plug Straight Adaptor

74-1015-534

Inter-Series adaptor for connection between different connector families. BNC Jack to F Type Plug Straight Adaptor

From £1.23 each ex VAT
1-9 = £1.72 |  10-24 = £1.54 |  25-49 = £1.39 |  50-99 = £1.31 |  +100 = £1.23

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 0-1 GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Weight 11.5g
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Stripping Dimensions C-F-type

Accessories


Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions C-F-type
