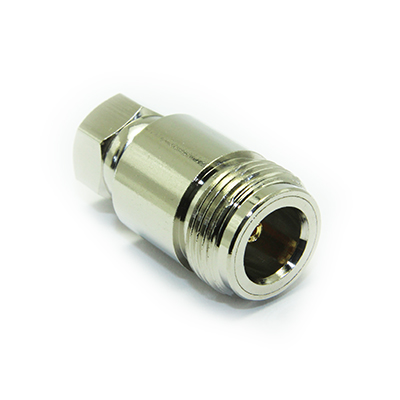

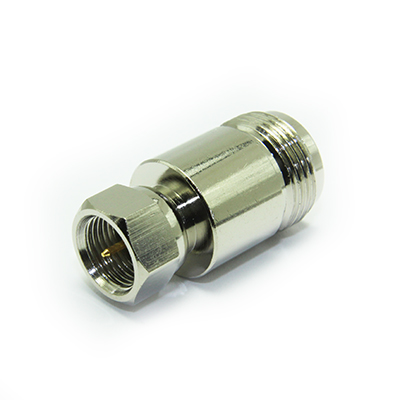

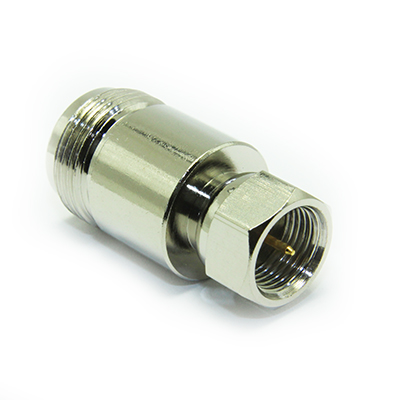

F Type Plug to N Type Jack Straight Adaptor

74-1525-511

Inter-Series adaptor for connection between different connector families. F Type 75 Ohm Plug to 50 Ohm N Type Jack Straight Adaptor

From £2.67 each ex VAT
1-9 = £3.74 |  10-24 = £3.34 |  25-49 = £3.01 |  50-99 = £2.83 |  +100 = £2.67

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 / 75 Ohm
Frequency Range 0-1 GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Weight 26.5g
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Stripping Dimensions C-50-Ohm-N

Accessories


Downloads

Interface Dimensions C-F-type
Stripping Dimensions C-50-Ohm-N
