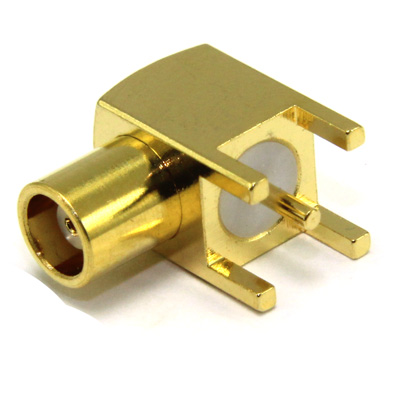

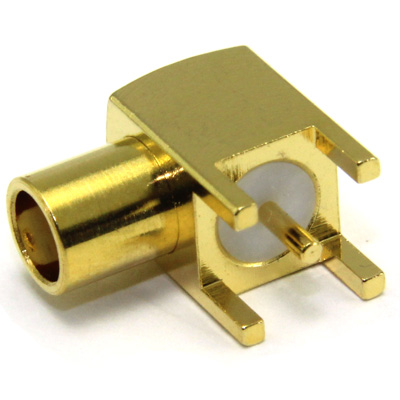

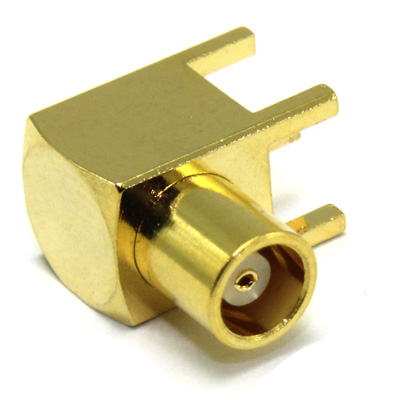

MCX Right Angle PCB Mount Jack

45-465-D3

MCX 50 ohm right angle PCB solder jack, with gold plated body and contact, solder to board.

From £2.35 each ex VAT
1-9 = £2.75 |  10-24 = £2.65 |  25-49 = £2.55 |  50-99 = £2.45 |  +100 = £2.35

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 6GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
Design Standard CECC22220
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 250
Weight 1.59g
Mating Force 10N Max
Un-Coupling Force 20N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Solder
Outer Contact Solder

Accessories

Centre Contact Crimp Solder
Outer Contact Crimp Solder

Downloads

Interface Dimensions C-MCX
