MMCX Straight Crimp / Crimp Plug

47-005-D3-AA

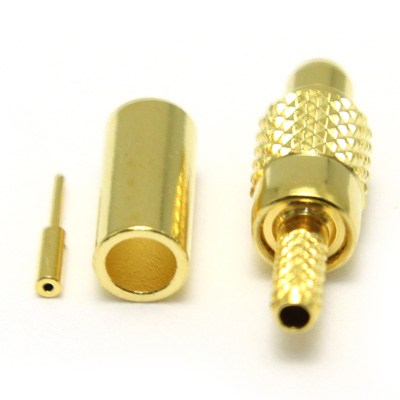

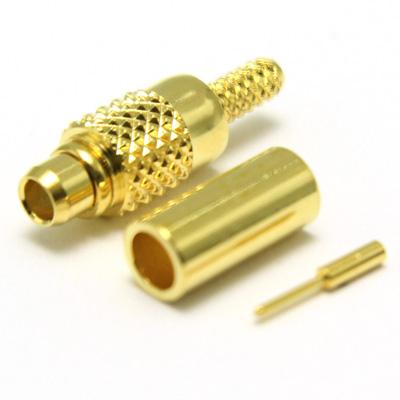

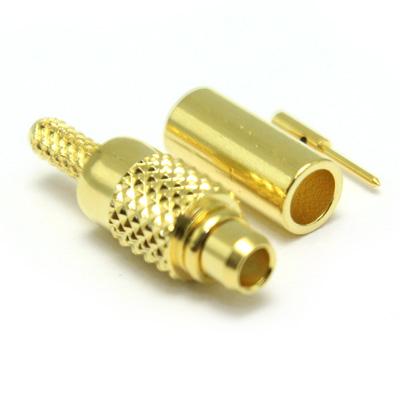

MMCX 50 ohm full crimp straight plug. With gold plated centre contact and annealed crimp zones for reliable enhanced performance. Suitable for use with RG178 and similar cables in group AA.

From £1.46 each ex VAT
1-9 = £2.04 |  10-24 = £1.78 |  25-49 = £1.64 |  50-99 = £1.51 |  +100 = £1.46

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 6GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
Design Standard IEC 122340
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 7N min
Cable Retention 60N min
Weight
Mating Force 10N Max
Un-Coupling Force 20N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG178 AA 50 1.8 PTFE 0.84 SCCS 0.3 7/0.1 Copper Braid
RG196 AA 50 1.83 PTFE 0.86 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions 47-005-SD
Centre Contact 8 Point Indent 96-AFM8
Outer Contact 3.25mm Hex 96-336J

Accessories

Centre Contact Crimp Tool 96-AFM8
Outer Contact Crimp Tool 96-336J

Downloads

Interface Dimensions C-MMCX
Stripping Dimensions 47-005-SD
Assembly Process AP001
