25-054-B3-AK

Shop online for RF Connectors and Cable Assemblies

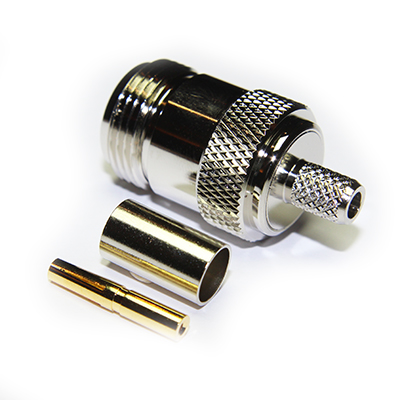

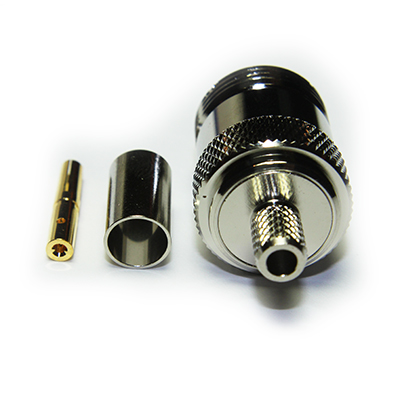

N Type Crimp / Crimp Jack

N Type 50 ohm full crimp straight jack. With gold plated centre contact, both contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RG223 or similar cables in group AK.

From £3.82 each ex VAT
1-9 = £5.27 | 10-24 = £4.75 | 25-49 = £4.45 | 50-99 = £4.07 | +100 = £3.82

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	11GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	27N min
Cable Retention	220N min
Weight	30g
Mating Force	6.6Ncm max
Un-Coupling Force	6.6Ncm max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP67
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AK

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
RG142	AK	50	4.95	PTFE	2.95	CCS	0.94	1/0.94	DoubleCopperBraid
RG223	AK	50	5.38	PE	2.95	SC	0.89	1/0.89	DoubleCopperBraid
RG400	AK	50	4.95	PTFE	2.95	SCCS	0.97	19/0.19	DoubleCopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	2.54mm Hex	96-336G
Outer Contact	6.5mm Hex	96-336G

Accessories

Centre Contact Crimp Tool	96-336G
Outer Contact Crimp Tool	96-336G

Downloads

Interface Dimensions	C-50-Ohm-N
Stripping Dimensions	SD01
Data Sheet	25 054 B3 AK REV B00 1
Assembly Process	AP001
