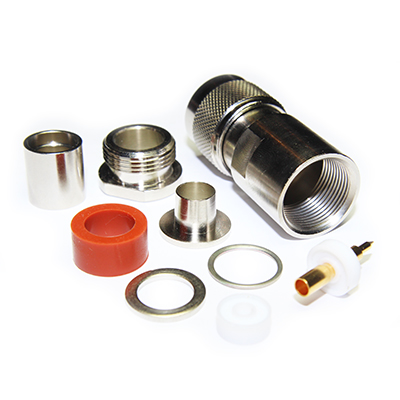

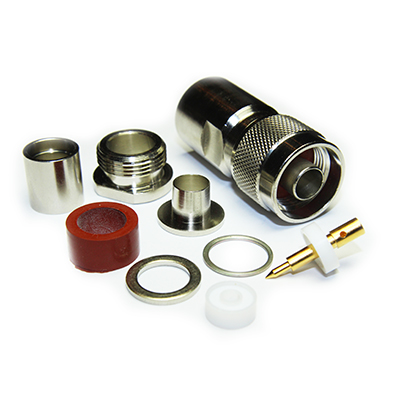

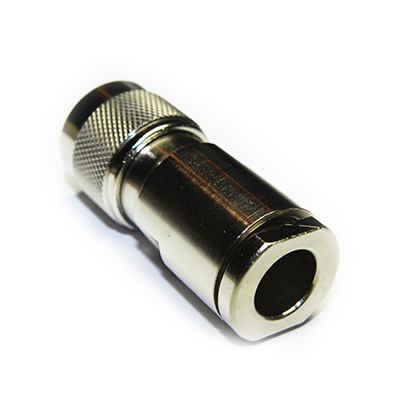

N Type Solder / Top Hat Clamp Plug

25-001-B3-DE

N Type 50 ohm solder clamp straight plug. The gold plated centre contact is soldered or crimped and the braid and jacket are secured with a top hat clamp. The outer contact body is nickel plated. Suitable for use with Times LMR®400 and similar cables in group DE.

Error loading MacroEngine script (file: )

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Clamp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 220N min
Weight 71.1g
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Recommended Coupling Nut Torque 170Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP68
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group DE

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 7810A DE 50 10.24 PE 7.24 BCCAl 2.74 1/2.74 Foil and Braid
Belden 8214 DE 50 10.2 PE 7.26 BC 2.74 7x19 Copper Braid
Belden 9913 DE 50 10.29 PE 7.26 BC 2.74 1/2.74 Copper Braid
Belden H1000PE DE 50 10.3 PEF 7.15 BC 2.62 1/2.62 Foil and Braid
Belden H2000 Flex DE 50 10.3 PEF 7.15 BC 2.62 1/2.62 Foil and Braid
RG8 DE 50 10.24 PE 7.24 BC 2.62 1/2.62 Foil and Braid
Times LMR®400 DE 50 10.29 PEF 7.24 BCCAl 2.74 1/2.74 Foil and Braid
Times LMR®400 Ultraflex DE 50 10.29 PEF 7.24 BC 2.74 7/0.96 Foil and Braid
TZC50032 DE 50 10.3 PE 7.24 BC 2.74 1/2.74 Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP010
Stripping Dimensions 25-002-SD
Centre Contact Solder or 2.54mm Hex 96-336K
Outer Contact Clamp

Accessories

Centre Contact Crimp Tool 96-336K

Downloads

Interface Dimensions C-50-Ohm-N
Stripping Dimensions 25-002-SD
Data Sheet 25-001-B3-DE-REV-A00-1
Assembly Process AP010
