N Type Solder / Clamp Plug

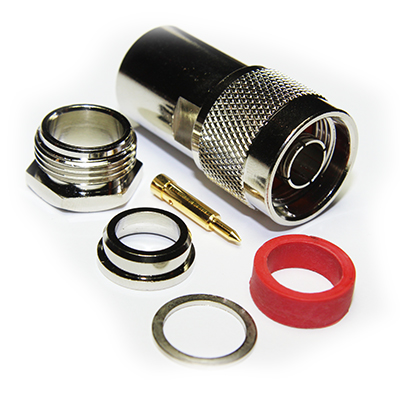

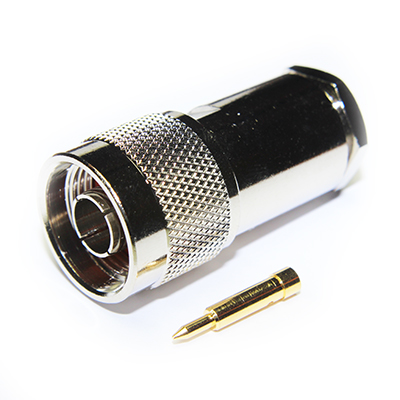

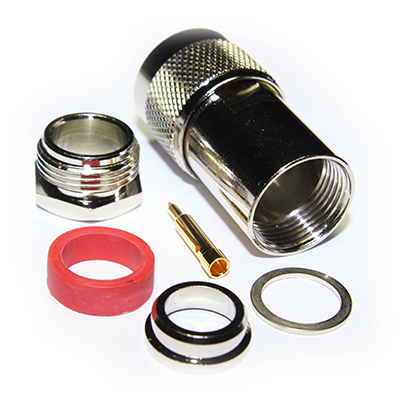

N Type 50 ohm solder clamp straight plug. The gold plated centre contact is soldered the braid and jacket are clamped. The outer contact body is nickel plated. Suitable for use with RG213 and similar cables in group AN.

From £3.34 each ex VAT
1-9 = £4.45 | 10-24 = £4.18 | 25-49 = £3.71 | 50-99 = £3.52 | +100 = £3.34

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	11GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Solder
Outer Contact Termination	Clamp
Mating Cycles	500
Contact Retention	27N min
Cable Retention	150N min
Weight	44.9g
Mating Force	6.6Ncm max
Un-Coupling Force	6.6Ncm max
Recommended Coupling Nut Torque	170Ncm Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP67
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	PTFE
Screw Coupling Nut	Brass
Gasket	Silicon
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AN

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
KX4	AN	50	10.3	PE	7.25	BC	2.25	7/0.75	CopperBraid
RG213	AN	50	10.29	PE	7.24	BC	2.25	7/0.75	CopperBraid
URM67	AN	50	10.3	PEF	7.25	BC	2.25	7/0.75	CopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP016
Stripping Dimensions	25-002-SD
Centre Contact	Solder
Outer Contact	Clamp

Accessories

Downloads

Interface Dimensions	C-50-Ohm-N
Stripping Dimensions	25-002-SD
Data Sheet	25-002-B3-AN-REV-A00-2
Assembly Process	AP016
