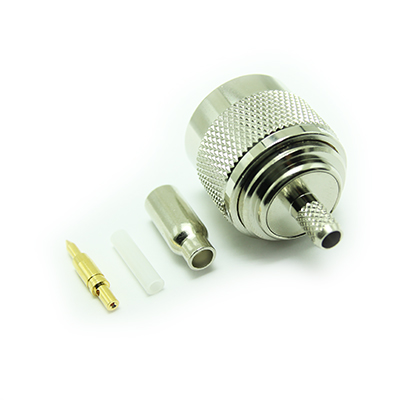

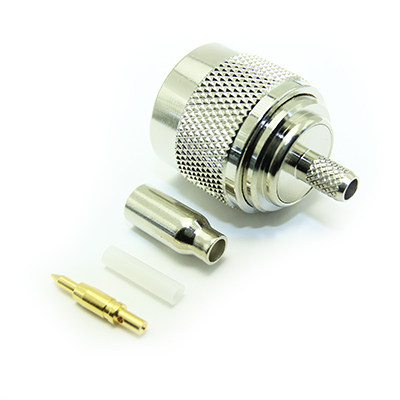

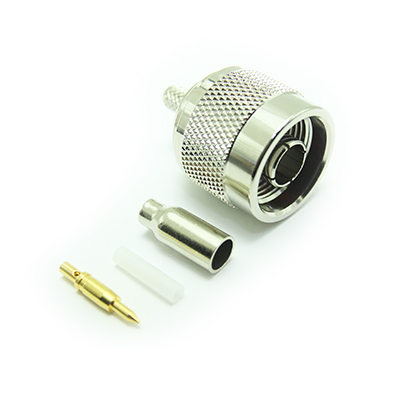

N Type Crimp / Crimp Plug ( 4 Part )

25-006-B3-AE

N Type 50 ohm full crimp straight plug. The gold plated centre contact and crimp sleeve are annealed to provide a robust and durable termination. The outer contact body is nickel plated. Suitable for use with RD316 and similar cables in group AE.

From £1.70 each ex VAT
1-9 = £2.96 |  10-24 = £2.36 |  25-49 = £1.99 |  50-99 = £1.72 |  +100 = £1.70

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 150N min
Weight 36.68g
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Recommended Coupling Nut Torque 170Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AE

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RD188 AE 50 2.9 PTFE 1.52 SCCS 0.51 7/0.17 Double Copper Braid
RD316 AE 50 2.9 PTFE 1.52 SCCS 0.51 7/0.17 Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP002
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 5.41mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Crimp Tube 100-019

Downloads

Interface Dimensions C-50-Ohm-N
Stripping Dimensions SD01
Data Sheet 25 006 B3 AE REV B01 1
Assembly Process AP002
