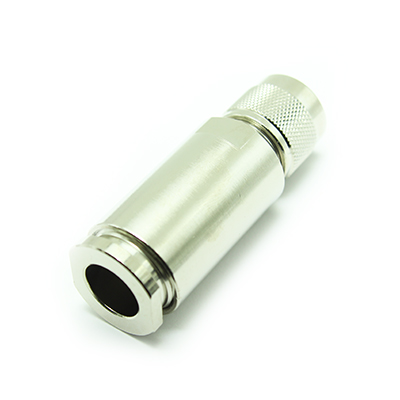

N Type Easy Fit Contact / Top Hat Clamp Plug

25-017-B3-DG

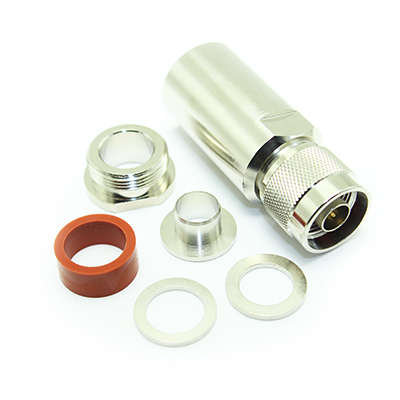

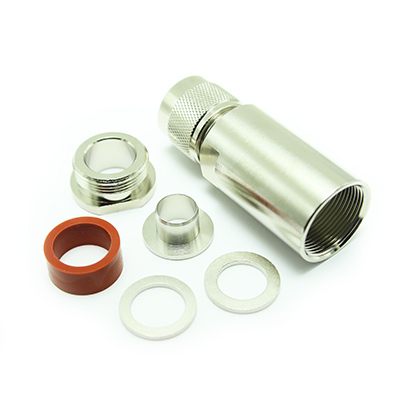

N Type 50 ohm plug with Easy Fit assembly requiring no special tools. Centre conductor of the cable is pushed home and is gripped by the gold plated contact. The braid and jacket are clamped. Suitable for use with Times LMR®500 and similar cables in group DG.

From £5.30 each ex VAT
1-9 = £10.50 |  10-24 = £8.40 |  25-49 = £7.00 |  50-99 = £6.00 |  +100 = £5.30

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Easy Fit
Outer Contact Termination Clamp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 200N min
Weight
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Recommended Coupling Nut Torque 170Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP68
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group DG

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Times LMR®500 DG 50 12.7 PEF 9.4 BCCAl 3.61 1/3.61 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Stripping Dimensions 25-017-SD
Centre Contact Easy Fit
Outer Contact clamp

Accessories

Downloads

Interface Dimensions C-50-Ohm-N
Stripping Dimensions 25-017-SD
