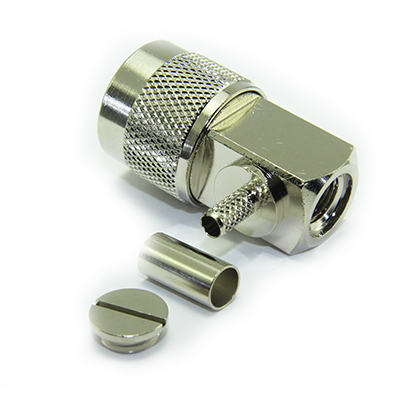

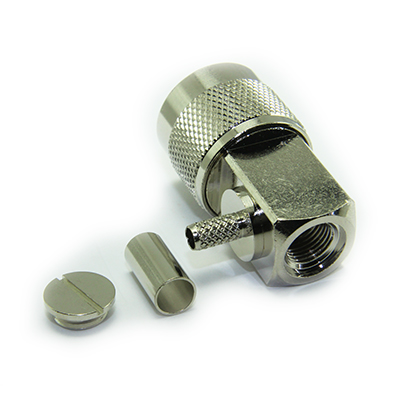

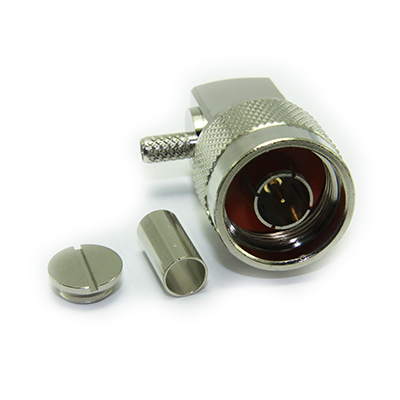

N Type Right Angle Solder / Crimp Plug

25-105-A3-AU

N Type 50 ohm right angle solder crimp plug. The gold plated centre contact is soldered and the braid is crimped. Suitable for RG400 and similar cables in group AU.

From £3.97 each ex VAT
1-9 = £5.29 |  10-24 = £4.96 |  25-49 = £4.41 |  50-99 = £4.18 |  +100 = £3.97

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 2GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 220N min
Weight 61.3g
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Recommended Coupling Nut Torque 170Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AU

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP017
Stripping Dimensions 25-110-SD
Centre Contact Solder
Outer Contact 5.41mm Hex 96-336A

Accessories

Outer Contact Crimp Tool 96-336A

Downloads

Interface Dimensions C-50-Ohm-N
Stripping Dimensions 25-110-SD
Assembly Process AP017
