SMA Crimp / Crimp Plug

30-005-D3-AD

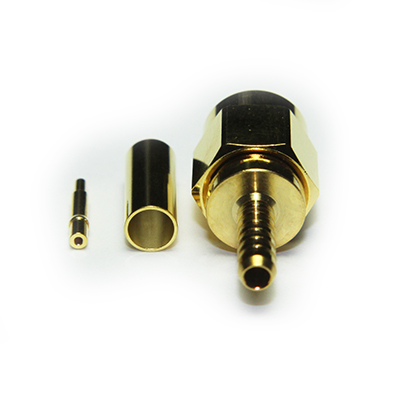

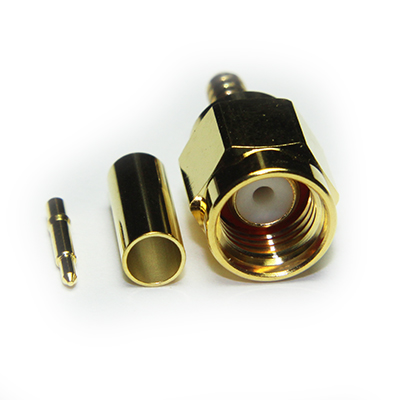

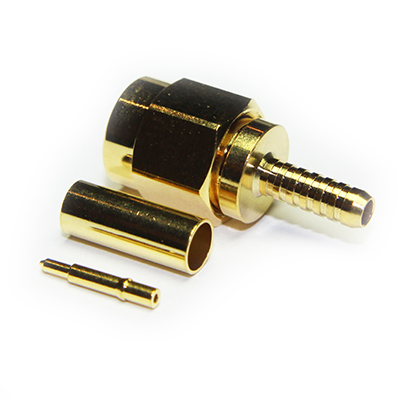

SMA straight full crimp plug. With gold plated contact and body. Contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RG174 and similar cables in group AD.

From £1.85 each ex VAT
1-9 = £2.65 |  10-24 = £2.35 |  25-49 = £2.16 |  50-99 = £1.99 |  +100 = £1.85

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 100N min
Weight 4.4g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Recommended Coupling Nut Torque 60Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AD

Cable Type Cable GroupImpedance
Ohms
Jacket
O/D mm
Dielectric
Material
Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm
Centre Conductor
Stranding mm

Shielding
Outer Conductor

KX22 AD 50 2.5 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
KX3 AD 50 2.54 PE 1.5 CCS 0.48 7/0.16 Copper Braid
RG174 AD 50 2.79 PE 1.52 BCCS 0.48 7/0.16 Copper Braid
RG188 AD 50 2.67 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
RG316 AD 50 2.49 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
Times LMR®100 AD 50 2.79 PE 1.52 BCCS 0.46 1/0.46 Foil and Braid
URM95 AD 50 2.3 PE 1.5 SCCS 0.46 1/0.46 Copper Braid
WBC100 AD 50 2.67 PE 1.52 CCS 0.46 1/0.46 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD03
Centre Contact 0.99mm Square 96-336T1
Outer Contact 3.25mm Hex 96-336T1

Accessories

Centre Contact Crimp Tool 96-336T1
Outer Contact Crimp Tool 96-336T1
SMA Plug Nut Runner 96-3000
Protective PVC Cap 100-124

Downloads

Interface Dimensions C-SMA
Stripping Dimensions SD03
Data Sheet 30 005 D3 AD REV A00 2
Assembly Process AP001
