Back to SMA Plugs

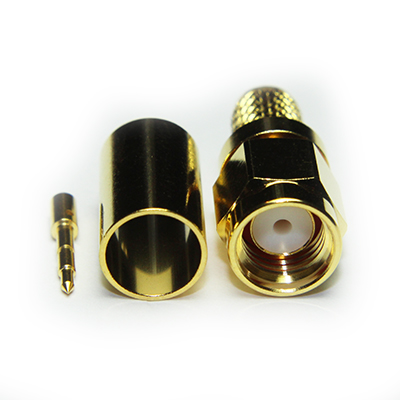

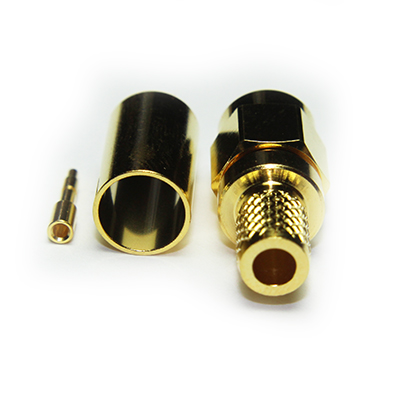

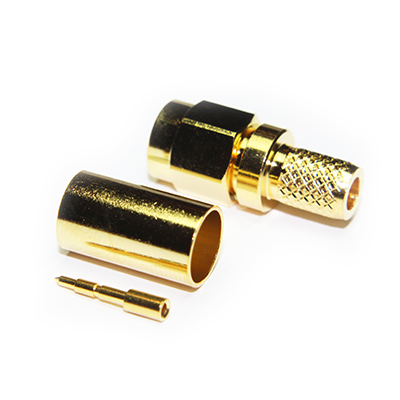

SMA Crimp / Crimp Plug

30-005-D3-AK

SMA straight full crimp plug. With gold plated contact and body. Contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RG223 and similar cables in group AK.

From £1.75 each ex VAT
1-9 = £2.37 |  10-24 = £2.16 |  25-49 = £1.98 |  50-99 = £1.82 |  +100 = £1.75

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 100
Contact Retention 27N min
Cable Retention 220N min
Weight 5.36g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Recommended Coupling Nut Torque 60Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AK

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG142 AK 50 4.95 PTFE 2.95 CCS 0.94 1/0.94 DoubleCopperBraid
RG223 AK 50 5.38 PE 2.95 SC 0.89 1/0.89 DoubleCopperBraid
RG400 AK 50 4.95 PTFE 2.95 SCCS 0.97 19/0.19 DoubleCopperBraid

Performance

Performance Data available on request, please contact COAX
Return Loss
1GHz -29.87dB
3GHz -28.6dB
4.5GHz -24.5dB
6GHz -18.7dB

Assembly

Assembly Process AP001
Stripping Dimensions SD03
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 6.5mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Protective PVC Cap 100-124

Downloads

Interface Dimensions C-SMA
Stripping Dimensions SD03
Data Sheet 30 005 D3 AK REV B01 2
Assembly Process AP001
