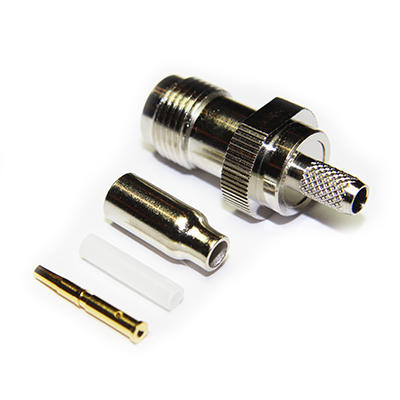

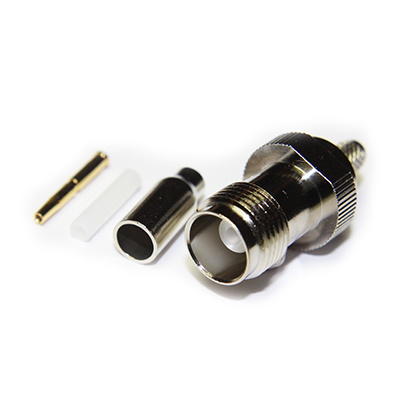

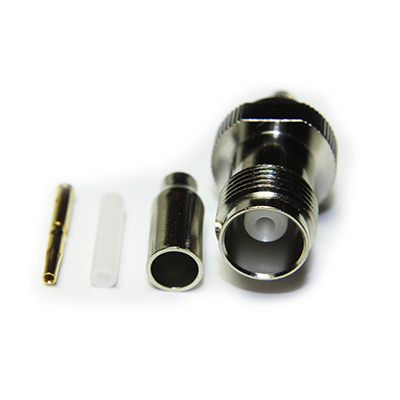

TNC Crimp / Crimp Jack 50 Ohm ( 4 Part )

13-055-A3-AD

TNC 50 ohm straight full crimp jack. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG316 or similar cables in group AD.

From £2.95 each ex VAT
1-9 = £3.95 |  10-24 = £3.75 |  25-49 = £3.50 |  50-99 = £3.25 |  +100 = £2.95

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 6GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 14.23g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AD

Cable Type Cable GroupImpedance
Ohms
Jacket
O/D mm
Dielectric
Material
Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm
Centre Conductor
Stranding mm

Shielding
Outer Conductor

KX22 AD 50 2.5 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
KX3 AD 50 2.54 PE 1.5 CCS 0.48 7/0.16 Copper Braid
RG174 AD 50 2.79 PE 1.52 BCCS 0.48 7/0.16 Copper Braid
RG188 AD 50 2.67 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
RG316 AD 50 2.49 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
Times LMR®100 AD 50 2.79 PE 1.52 BCCS 0.46 1/0.46 Foil and Braid
URM95 AD 50 2.3 PE 1.5 SCCS 0.46 1/0.46 Copper Braid
WBC100 AD 50 2.67 PE 1.52 CCS 0.46 1/0.46 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP002
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 5.41mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Black Strain Relief Boot 97-800-BK-03
Red Strain Relief Boot 97-800-RE-03
Blue Strain Relief Boot 97-800-BU-03
Yellow Strain Relief Boot 97-800-YE-03
Green Strain Relief Boot 97-800-GN-03

Downloads

Interface Dimensions C-50-Ohm-TNC
Stripping Dimensions SD01
Data Sheet 13 055 A3 AD REV A01 1
Assembly Process AP002
