13-005-B3-AK

Shop online for RF Connectors and Cable Assemblies

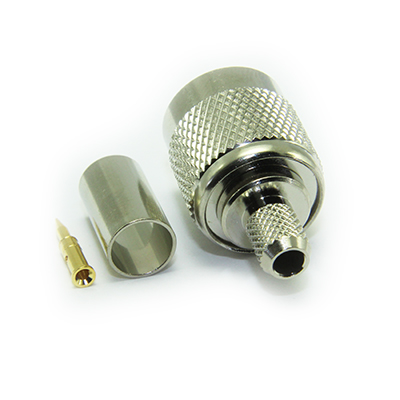

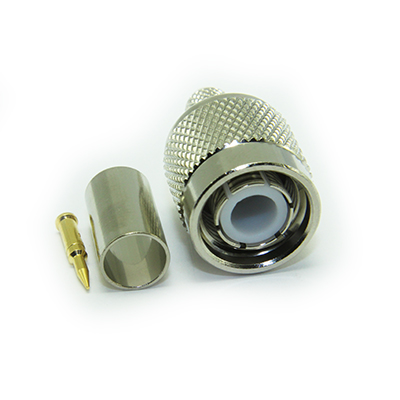

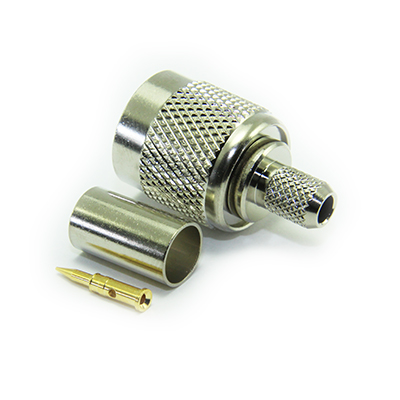

TNC Crimp / Crimp Plug 50 Ohm

TNC 50 ohm straight full crimp plug. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG223 or similar cables in group AK.

From £2.50 each ex VAT
1-9 = £3.25 | 10-24 = £3.05 | 25-49 = £2.89 | 50-99 = £2.75 | +100 = £2.50

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 11GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	10N min
Cable Retention	220N min
Weight
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	Delrin
Threaded Coupling Nut	Brass
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AK

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
RG142	AK	50	4.95	PTFE	2.95	CCS	0.94	1/0.94	DoubleCopperBraid
RG223	AK	50	5.38	PE	2.95	SC	0.89	1/0.89	DoubleCopperBraid
RG400	AK	50	4.95	PTFE	2.95	SCCS	0.97	19/0.19	DoubleCopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	1.72 mm Hex	96-336A
Outer Contact	6.5mm Hex	96-336A

Accessories

Centre Contact Crimp Tool	96-336A
Outer Contact Crimp Tool	96-336A

Downloads

Interface Dimensions	C-50-Ohm-TNC
Stripping Dimensions	SD01
Data Sheet	13-005-B3-AK-REV-A02-2
Assembly Process	AP001
