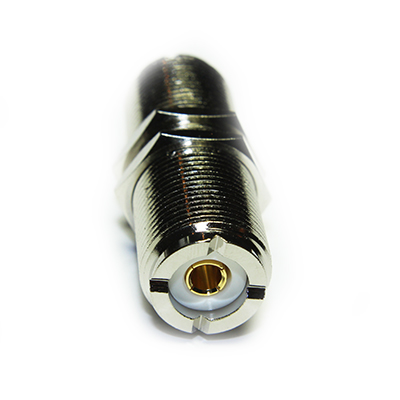

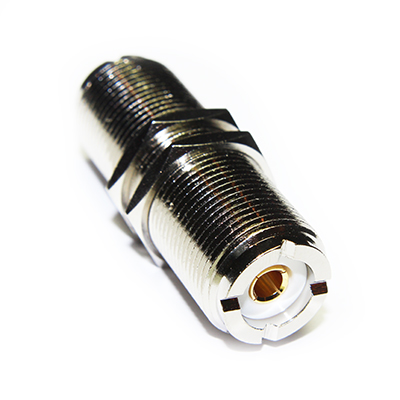

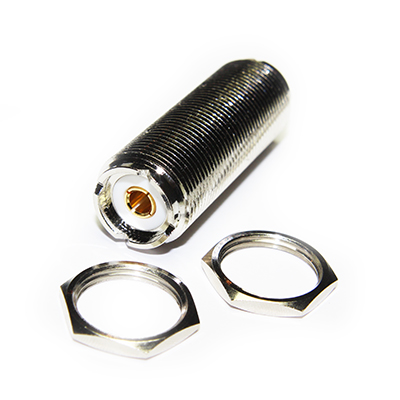

UHF Straight Bulkhead Jack to Jack Adaptor

20-501-A0

UHF straight bulkhead mounted jack to jack adaptor with gold plated centre contact and nickel plated body.

From £1.80 each ex VAT
1-9 = £2.30 |  10-24 = £2.10 |  25-49 = £1.95 |  50-99 = £1.85 |  +100 = £1.80

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 0-300 MHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Mating Cycles 250
Weight
Mating Force 20N Max
Un-Coupling Force 20N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX
