1.0/2.3 Crimp / Crimp Plug True 75 Ohm 12Ghz

52-005-B6-FB

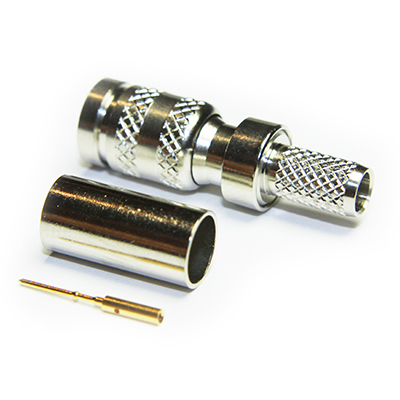

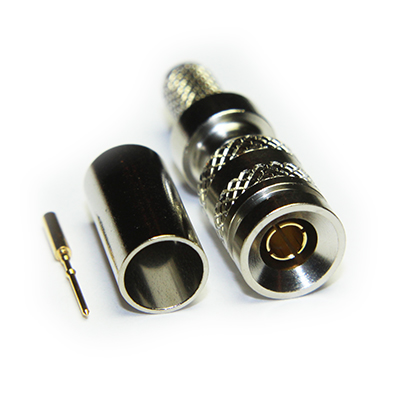

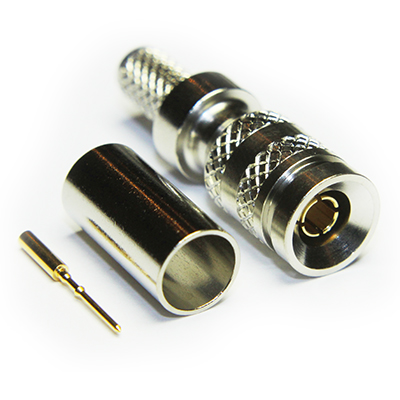

1.0/2.3 straight full crimp plug with gold plated centre and outer contact. Centre contact and crimp sleeve are annealed for enhanced performance. Suitable for use with Belden 1505A and similar cable in group FB.

From £3.70 each ex VAT
1-9 = £4.40 |  10-24 = £4.20 |  25-49 = £4.10 |  50-99 = £3.98 |  +100 = £3.70

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-29
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 5.44g
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Beryllium Copper
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group FB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
70081NH FB 75 5.92 PEF 3.68 BC 0.81 1/0.81 Bonded Foil and Braid
Belden 1505A FB 75 5.94 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 4505ANH FB 75 5.99 PEF 3.7 BC 0.81 1/0.81 Bonded Foil and Braid
Belden 4505ANH FB 75 5.99 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 4505R FB 75 5.94 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 70081NH FB 75 5.92 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Bryant BD SD50A FB 75 6.1 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Bryant BD SD50A FB 75 6.1 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Canare L-4CFB FB 75 6.1 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Canare L-4CHD FB 75 6.1 PEF 3.68 BC 0.82 1/0.82 Foil and Braid
Conducfil 14472 FB 75 5.9 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Draka 0.8/3.7AF FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Draka HD PRO 0.8/3.7 AF FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Image 720 FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Percon VK6 FB 75 6 PEF 3.7 BC 0.81 1/0.81 Foil and Braid
Percon VK66 FB 75 6.14 PEF 3.7 BC 0.97 7/0.29 Double Copper Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
3GHz -20dB
6GHz -25dB
9GHz -21dB
12GHz -12dB
18GHz -5dB

Assembly

Assembly Process AP026
Stripping Dimensions 52 005 SD
Centre Contact .95 Sq 96-HTS-76
Outer Contact 6.48mm Hex 96-HTS-76

Accessories

Centre Contact Crimp Tool 96-HTS-76
Outer Contact Crimp Tool 96-HTS-76
1.0/2.3 - 75ohm Centre Contact Crimp Alignment Tool 100-1023
1.0/2.3 Extractor Tool 96-1023
Protective PVC Cap 100-135

Downloads

Interface Dimensions C-75-Ohm-1.0-2.3
Stripping Dimensions 52 005 SD
Data Sheet 52 005 B6 FB REV B01 3
Assembly Process AP026
