1.0/2.3 PCB Straight Bulkhead Jack True 75 ohm 3Ghz

52-454-D36

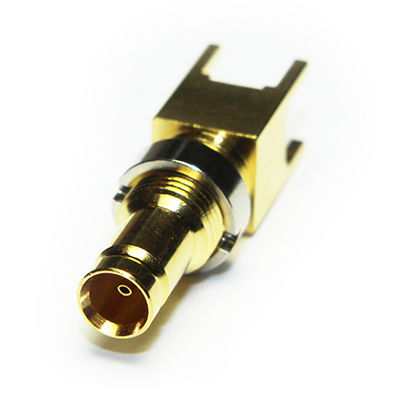

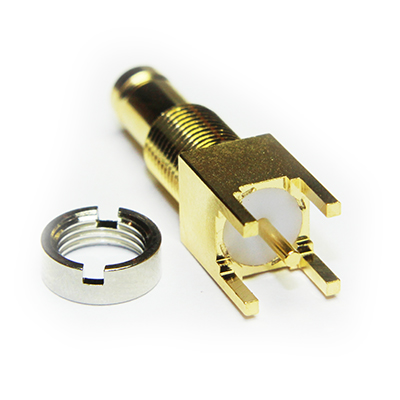

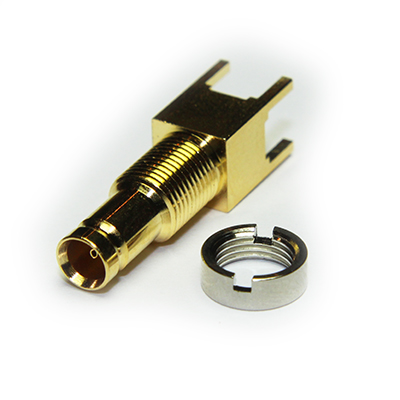

1.0/2.3 True 75ohm straight bulkhead mount PCB jack. Through-hole gold plated 4 leg solder body, with gold plated solder centre contact.

From £3.00 each ex VAT
1-9 = £3.80 |  10-24 = £3.58 |  25-49 = £3.27 |  50-99 = £3.08 |  +100 = £3.00

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range 4.5Ghz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -18.3 dB @ 4.5GHz
Mechanical Specification
Design Standard IEC 61169-29
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 500
Weight
Mating Force
Un-Coupling Force
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Accessories


Downloads

Interface Dimensions C-75-Ohm-1.0-2.3
Data Sheet 52-454-D36-REV-A00-2
