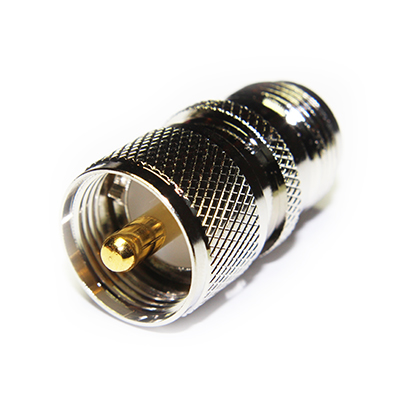

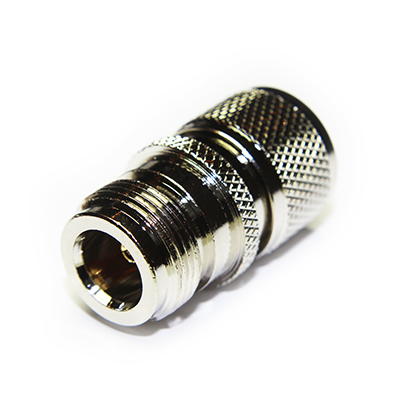

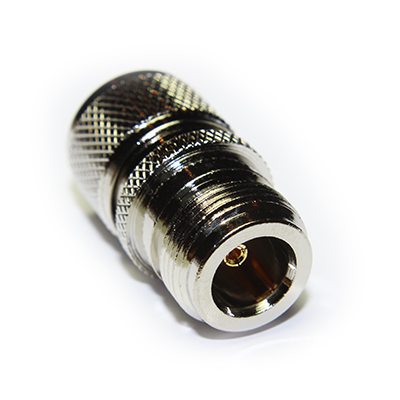

UHF Plug to N Type Jack Straight Adaptor

74-2025-514

Inter-Series adaptor for connection between different connector families. UHF Plug to N Type Jack Straight Adaptor

From £3.04 each ex VAT
1-9 = £4.25 |  10-24 = £3.80 |  25-49 = £3.43 |  50-99 = £3.22 |  +100 = £3.04

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 0-1 GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Weight 32.3
Environmental Specification
Operating Temperature -35 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Stripping Dimensions C-50-Ohm-N

Accessories


Downloads

Stripping Dimensions C-50-Ohm-N
Data Sheet 74-2025-514
