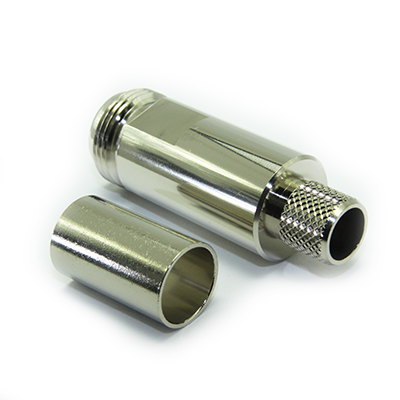

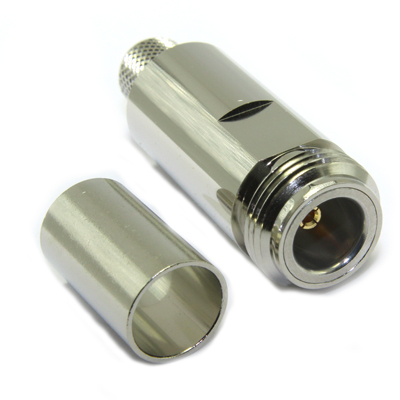

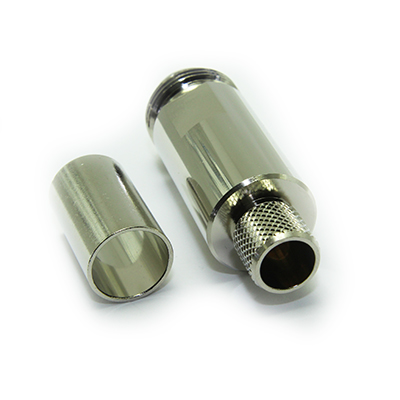

N Type Easy Fit / Crimp Jack

25-068-B3-DE

N Type 50 ohm Easy Fit straight jack for simple termination to cable. The conductor is pushed into the gold plated Easy Fit contact and the braid is crimped. Suitable for use with Times LMR®400 or similar cables in group DE.

From £4.15 each ex VAT
1-9 = £5.53 |  10-24 = £5.19 |  25-49 = £4.61 |  50-99 = £4.37 |  +100 = £4.15

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -21.2 dB @ 6GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Easy Fit
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 150N min
Weight 45.7g
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group DE

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 7810A DE 50 10.24 PE 7.24 BCCAl 2.74 1/2.74 Foil and Braid
Belden 8214 DE 50 10.2 PE 7.26 BC 2.74 7x19 Copper Braid
Belden 9913 DE 50 10.29 PE 7.26 BC 2.74 1/2.74 Copper Braid
Belden H1000PE DE 50 10.3 PEF 7.15 BC 2.62 1/2.62 Foil and Braid
Belden H2000 Flex DE 50 10.3 PEF 7.15 BC 2.62 1/2.62 Foil and Braid
RG8 DE 50 10.24 PE 7.24 BC 2.62 1/2.62 Foil and Braid
Times LMR®400 DE 50 10.29 PEF 7.24 BCCAl 2.74 1/2.74 Foil and Braid
Times LMR®400 Ultraflex DE 50 10.29 PEF 7.24 BC 2.74 7/0.96 Foil and Braid
TZC50032 DE 50 10.3 PE 7.24 BC 2.74 1/2.74 Copper Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
1GHz -37.4dB
3GHz -27dB
4.5GHz -18.8dB
6GHz -21.2dB

Assembly

Assembly Process AP25-018
Stripping Dimensions 25-018-B3-DE-SD
Centre Contact Easy Fit
Outer Contact 10.9 mm Hex 96-336K

Accessories

Outer Contact Crimp Tool 96-336K
Rotary Cable Stripper 96-312S

Downloads

Interface Dimensions C-50-Ohm-N
Stripping Dimensions 25-018-B3-DE-SD
Data Sheet 25-068-B3-DE-REV-A03-1
Assembly Process AP25-018
