30-105-D3-AE

Shop online for RF Connectors and Cable Assemblies

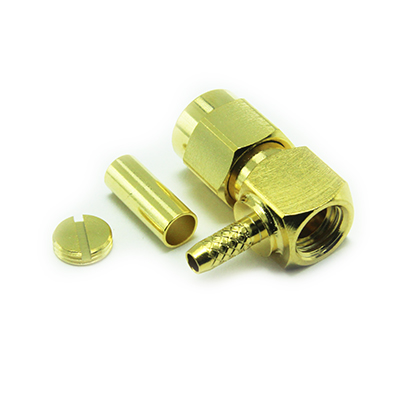

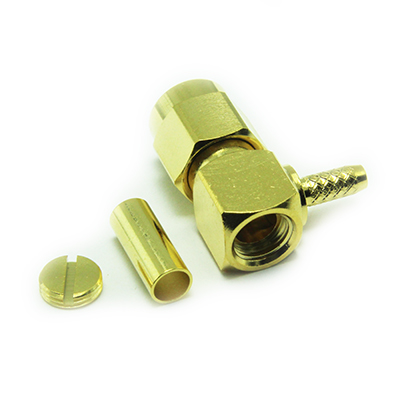

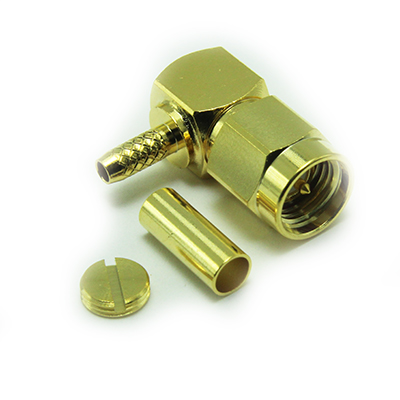

SMA Right Angle Solder / Crimp Plug

SMA right angle solder crimp plug. Centre contact is soldered and the braid is crimped. Contact and body are gold plated. Suitable for use with RD316 and similar cables in group AE.

From £2.00 each ex VAT
1-9 = £2.53 | 10-24 = £2.38 | 25-49 = £2.33 | 50-99 = £2.19 | +100 = £2.00

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	12.5GHz
Dielectric Withstand Voltage	750 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-15
RoHS Compliant	Yes
Centre Contact Termination	Solder
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	27N min
Cable Retention	150N min
Weight	5.78g
Mating Force	23Ncn
Un-Coupling Force	23Ncn
Recommended Coupling Nut Torque	60Ncm Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP67
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	PTFE
Screw Coupling Nut	Brass
Gasket	Silicon
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Suitable for Cables in Group AE

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
RD188	AE	50	2.9	PTFE	1.52	SCCS	0.51	7/0.17	Double Copper Braid
RD316	AE	50	2.9	PTFE	1.52	SCCS	0.51	7/0.17	Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP017
Stripping Dimensions	30-105-AK-SD
Centre Contact	Solder
Outer Contact	3.84mm Hex	96-336J

Accessories

Outer Contact Crimp Tool	96-336J
Protective PVC Cap	100-124

Downloads

Interface Dimensions	C-SMA
Stripping Dimensions	30-105-AK-SD
Data Sheet	30 105 D3 AE REV A03 1
Assembly Process	AP017
