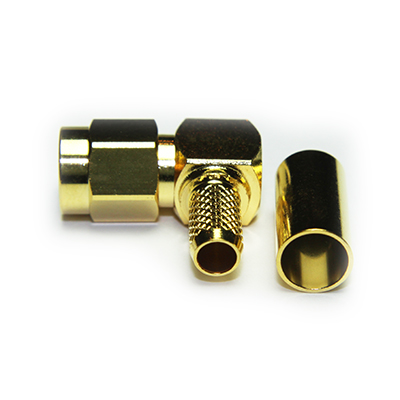

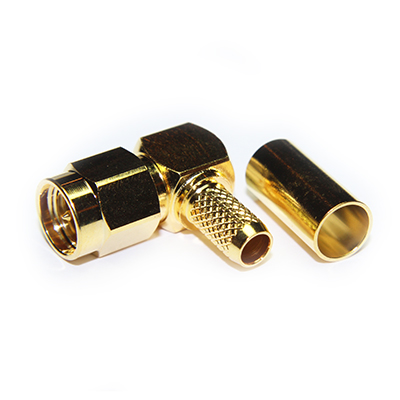

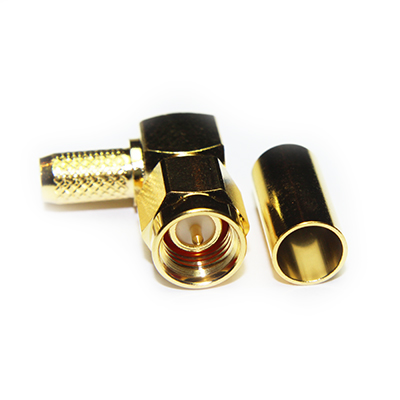

SMA Right Angle Solder / Crimp Plug

30-105-D3-AH

SMA right angle solder crimp plug. Centre contact is soldered and the braid is crimped. Contact and body are gold plated. Suitable for use with RG58 and similar cables in group AH.

From £2.00 each ex VAT
1-9 = £2.53 |  10-24 = £2.38 |  25-49 = £2.33 |  50-99 = £2.19 |  +100 = £2.00

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 27N min
Cable Retention 100N min
Weight 6.36g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Recommended Coupling Nut Torque 60Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AH

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 7806R AH 50 4.95 PEF 2.8 BC 0.94 1/0.94 Foil and Braid
Belden 9203 AH 50 4.95 PE 2.95 TC 0.9 19/0.18 Copper Braid
KX15 AH 50 4.95 PE 2.95 TC 0.91 19/0.18 Copper Braid
KX23 AH 50 5.1 PTFE 2.95 SC 1.02 7/0.34 Double Copper Braid
PSF 1/6 AH 50 5 PE 2.95 BC 0.96 7/0.32 Double Copper Braid
RG141 AH 50 4.83 PTFE 3 SCCS 0.94 1/0.94 Copper Braid
RG58 AH 50 4.95 PE 2.95 TC 0.91 19/0.18 Copper Braid
Times LMR®195 AH 50 4.95 PEF 2.79 BC 0.94 1/0.94 Foil and Braid
URM43 AH 50 5 PE 2.95 BC 0.9 1/0.9 Copper Braid
URM76 AH 50 5 PE 2.95 TC 0.96 7/0.32 Copper Braid
WBC195 AH 50 4.95 PE 2.79 BC 0.94 1/0.94 Foil and Braid

Performance

Performance Data 30 105 D3 AH PD
Return Loss
1.0 GHz -31.27 db
3.0 GHz -36.16 db
4.5 GHz -25.38 db
6.0 GHz -19.94 db

Assembly

Assembly Process AP017
Stripping Dimensions 30-105-AK-SD
Centre Contact Solder
Outer Contact 5.41mm Hex 96-336A

Accessories

Outer Contact Crimp Tool 96-336A
Rotary Cable Stripper 96-312B
Protective PVC Cap 100-124

Downloads

Interface Dimensions C-SMA
Stripping Dimensions 30-105-AK-SD
Data Sheet 30 105 D3 AH REV C01 1
Assembly Process AP017
Performance Data 30 105 D3 AH PD
