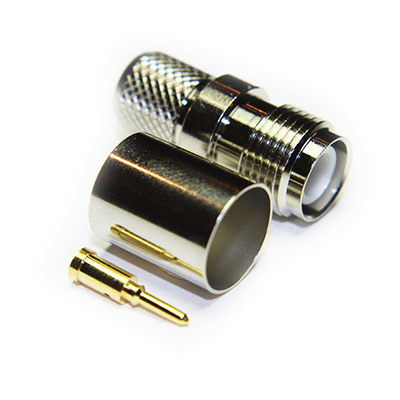

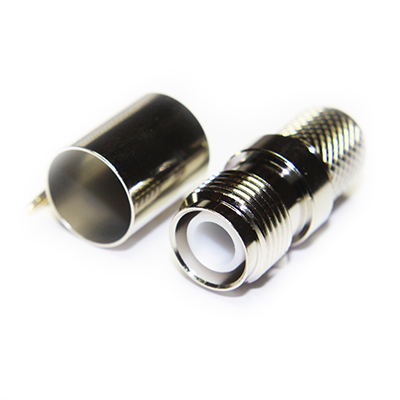

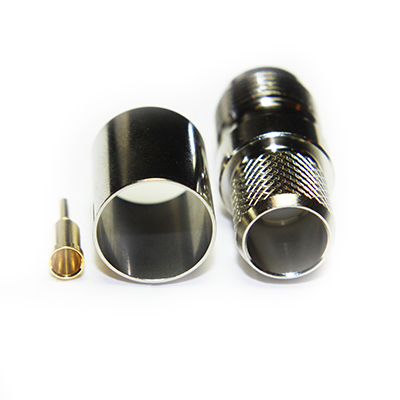

TNC Reverse Polarity Solder / Crimp Jack

14-054-B3-DE

TNC 50 ohm reverse polarity, straight full crimp jack. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact which may also be soldered is gold plated. Suitable for Times LMR®400 or similar cables in group DE.

From £2.75 each ex VAT
1-9 = £3.95 |  10-24 = £3.75 |  25-49 = £3.05 |  50-99 = £2.95 |  +100 = £2.75

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 150N min
Weight
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group DE

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 7810A DE 50 10.24 PE 7.24 BCCAl 2.74 1/2.74 Foil and Braid
Belden 8214 DE 50 10.2 PE 7.26 BC 2.74 7x19 Copper Braid
Belden 9913 DE 50 10.29 PE 7.26 BC 2.74 1/2.74 Copper Braid
Belden H1000PE DE 50 10.3 PEF 7.15 BC 2.62 1/2.62 Foil and Braid
Belden H2000 Flex DE 50 10.3 PEF 7.15 BC 2.62 1/2.62 Foil and Braid
RG8 DE 50 10.24 PE 7.24 BC 2.62 1/2.62 Foil and Braid
Times LMR®400 DE 50 10.29 PEF 7.24 BCCAl 2.74 1/2.74 Foil and Braid
Times LMR®400 Ultraflex DE 50 10.29 PEF 7.24 BC 2.74 7/0.96 Foil and Braid
TZC50032 DE 50 10.3 PE 7.24 BC 2.74 1/2.74 Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP004
Stripping Dimensions SD01
Centre Contact ( We recommend soldering for copper clad cables ie LMR400 ) or 3.25mm 96-336K
Outer Contact 10.9mm Hex 96-336K

Accessories

Centre Contact Crimp Tool 96-336K
Outer Contact Crimp Tool 96-336K
Rotary Cable Stripper 96-312S

Downloads

Interface Dimensions C-RP-TNC-50
Stripping Dimensions SD01
Data Sheet 14 054 B3 DE A00 1
Assembly Process AP004
