76-570-Q6-AI

Shop online for RF Connectors and Cable Assemblies

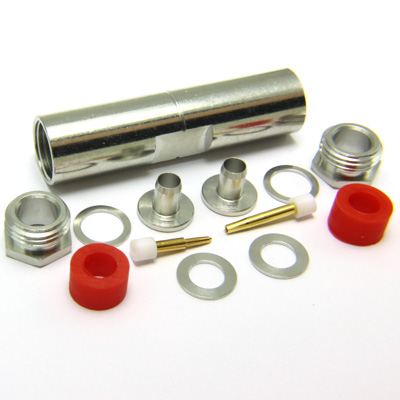

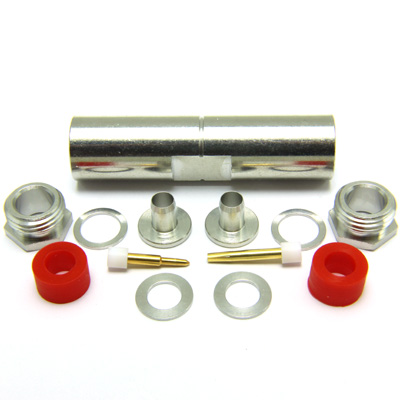

Coaxial Cable Joiner

Coaxial cable joiner for making a permanent, LOW LOSS connection of 2 separate cables. Ideal for repair and maintenance of damaged cables, or to aid re-routing, these terminators are sealed to IP68.

From £16.43 each ex VAT
1-9 = £23.00 | 10-24 = £20.53 | 25-49 = £18.54 | 50-99 = £17.42 | +100 = £16.43

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Specification
Impedance	75 Ohm
Frequency Range	Up to 4GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Clamp
Cable Retention	200N min
Weight	34.58g
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating	IP68@50mt
Materials
Centre Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold

Suitable for Cables in Group AI

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
KX30	AI	93	6.15	PE	3.71	BCCS	0.64	1/0.64	CopperBraid
KX52	AI	75	-	-	-	-	-	-	-
KX6	AI	75	6.1	PE	3.7	BC	0.6	7/0.20	CopperBraid
RG59	AI	75	6.15	PE	3.71	BCCS	0.57	1/0.57	CopperBraid
RG59U	AI	75	6.15	PE	3.71	BCCS	0.57	1/0.57	CopperBraid
RG62	AI	93	6.15	PE	3.71	BCCS	0.64	1/0.64	CopperBraid
URM104	AI	75	6	PE	-	-	0.64	1/0.64	CopperBraid
URM70	AI	75	5.8	PE	3.25	TC	0.6	7/0.20	CopperBraid

Performance

Performance Data available on request, please contact COAX

Return Loss
1GHz	-42.6db
2GHz	-33.5db
3GHz	-30.3db
4GHz	-27db

Assembly

Assembly Process	AP035
Stripping Dimensions	76 570 Q6 AI SD
Centre Contact	1.72 mm Hex	96-336A
Outer Contact	Clamp

Accessories

Centre Contact Crimp Tool

96-336A

Downloads

Stripping Dimensions	76 570 Q6 AI SD
Data Sheet	76 570 Q6 AI REV C00 1
Assembly Process	AP035
