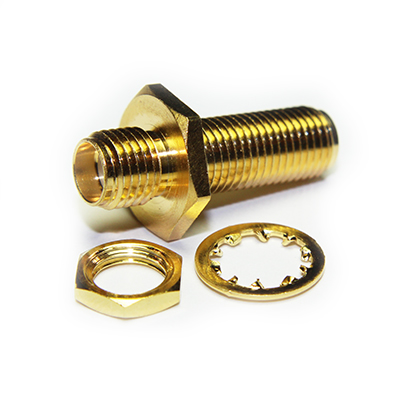

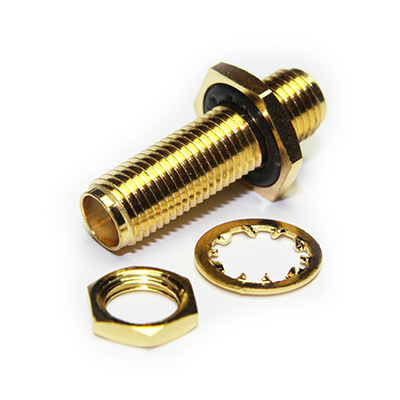

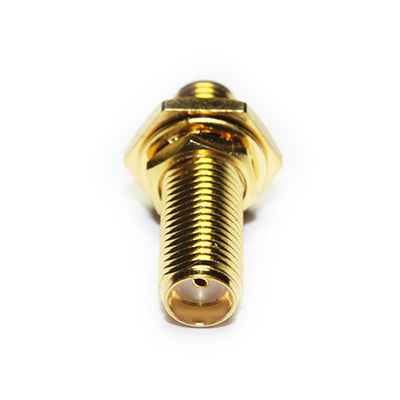

SMA Straight Bulkhead Jack to Jack Adaptor

30-501-D3

SMA straight jack to jack bulkhead adaptor with gold plated body and centre contact.

From £4.70 each ex VAT
1-9 = £7.78 |  10-24 = £5.74 |  25-49 = £5.15 |  50-99 = £4.91 |  +100 = £4.70

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Mating Cycles 100
Contact Retention 27N min
Weight 4.7g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Accessories

Sealing Cap for Jack 101-136

Downloads

Interface Dimensions C-SMA
Data Sheet 30-501-D3-REV-A01-1
